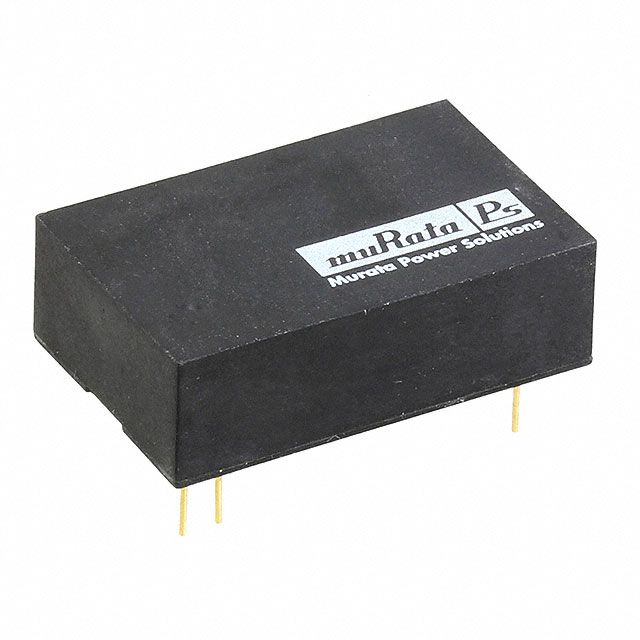

NCM6S4803EC _ DC DC Converters_Power Supplies

Part Number	NCM6S4803EC
Manufacturer	Murata Power Solutions
Other Part Numbers	811-2994-5-ND 811-2994-5
Description	DC DC CONVERTER 3.3V 6W
Detailed Description	Isolated Module DC DC Converter 1 Output 3.3V 1.52A 18V - 75V Input

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Murata Power Solutions
Series		NCM6 (6W)
Packaging		Tube
Part Status		Obsolete
Features		Remote On/Off, OTP, SCP, UVLO
Package / Case		24-DIP Module, 7 Leads
Size / Dimension		1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C
Applications		ITE (Commercial), Medical
Voltage - Input (Max)		75V
Efficiency		74%
Current - Output (Max)		1.52A
Voltage - Input (Min)		18V
Voltage - Output 1		3.3V
Control Features		Enable, Active Low
Power (Watts)		6 W
Number of Outputs		1
Voltage - Isolation		5.2 kV

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
