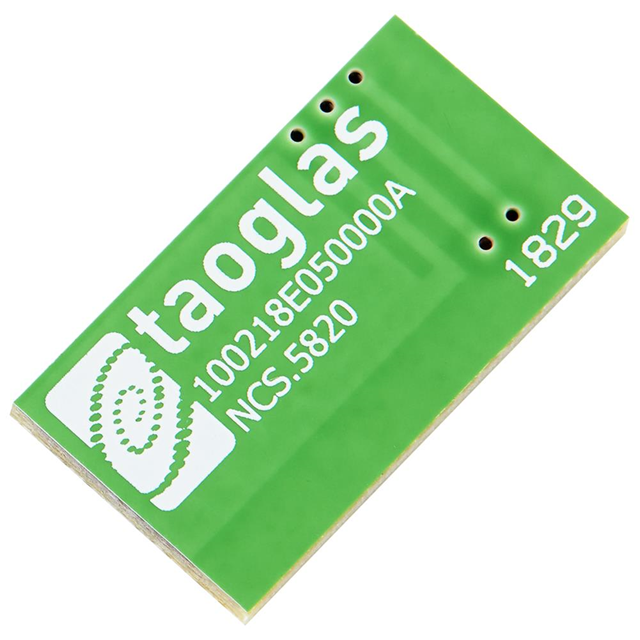

NCS.5820

NCS.5820

Part Number	NCS.5820
Manufacturer	Taoglas
Other Part Numbers	931-1592-2-ND 931-1592-1-ND 931-1592-6-ND 2266-NCS.5820 931-1592-1 931-1592-2 931-1592-6
Description	NB-IOT FR4 PCB ANTENNA FOR BANDS
Detailed Description	826.5MHz, 859MHz, 920MHz Chip RF Antenna 791MHz ~ 862MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz 0.1dBi, 0.1dBi, -0.8dBi Solder Surface Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Mounting Type		Surface Mount
Frequency Range		791MHz ~ 862MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz
Gain		0.1dBi, 0.1dBi, -0.8dBi
Termination		Solder
Number of Bands		3
Antenna Type		Chip
Height (Max)		0.063" (1.60mm)
Return Loss		-6dB, -7dB
Frequency Group		UHF (300MHz ~ 1GHz)
Frequency (Center/Band)		826.5MHz, 859MHz, 920MHz
Power - Max		5 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NCS.5820
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1353

Can ship immediately.
