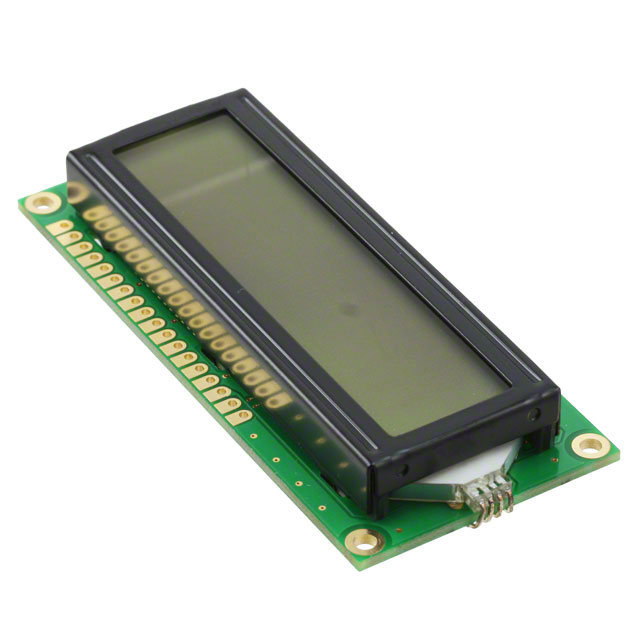

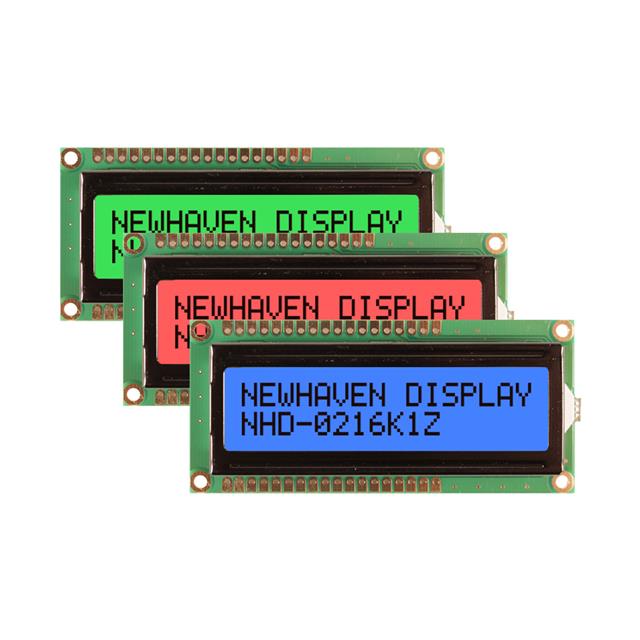

NHD-0216K1Z-FS(RGB)-FBW-REV1 _ LCD, OLED Character and Numeric_Optoelectronics

Part Number	NHD-0216K1Z-FS(RGB)-FBW-REV1
Manufacturer	Newhaven Display, Intl.
Other Part Numbers	NHD-0216K1Z-FS(RGB)-FBW-REV1-ND NHD0216K1ZFSRGBFBWREV1
Description	LCD MOD 32DIG 16X2 TRANSFL R/G/B
Detailed Description	Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - Red/Green/Blue Parallel 80.00mm x 36.00mm x 13.00mm
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Optoelectronics LCD, OLED Character and Numeric
Manufacturer		Newhaven Display, Intl.
Series
Packaging		Box
Part Status		Active
Display Type		FSTN - Film Super-Twisted Nematic
Display Mode		Transflective
Backlight		LED - Red/Green/Blue
Interface		Parallel
Operating Temperature		-20°C ~ 70°C
Voltage - Supply		4.7V ~ 5.5V
Viewing Area		64.50mm L x 16.40mm W
Character Size		5.23mm H x 3.00mm W
Display Format		16 x 2
Character Format		5 x 8 Dots
Dot Size		0.56mm W x 0.61mm H
Controller Type		SPLC780D OR ST7066U
Outline L x W x H		80.00mm x 36.00mm x 13.00mm
Text Color		Black
Background Color		Red/Green/Blue
Number of Characters		32.0

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8531.20.0020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Box	1	$16.14	$16.14
Total Amount: $16.14
