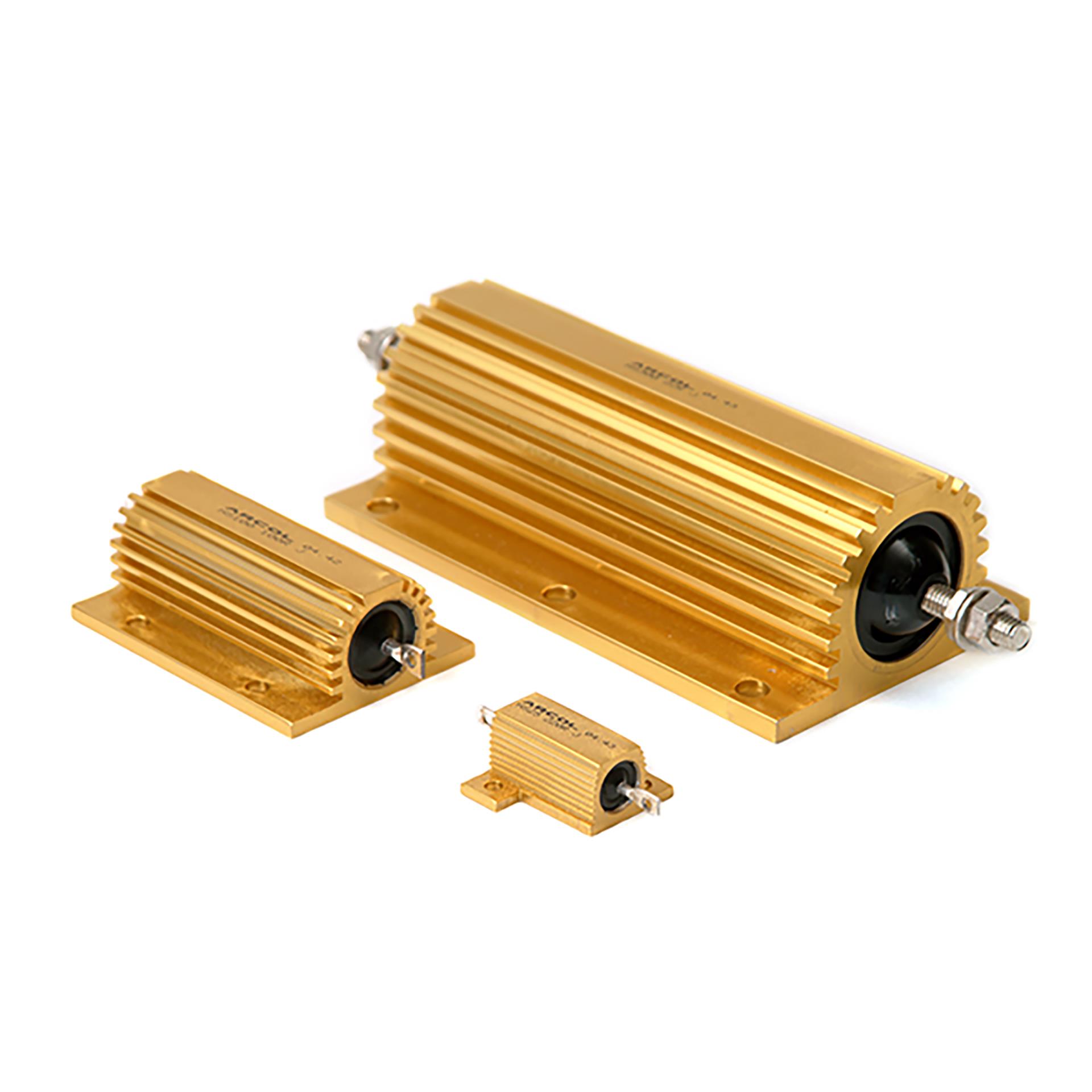

NHS100 2R2 J

NHS100 2R2 J

Part Number	NHS100 2R2 J
Manufacturer	Ohmite
Other Part Numbers	273-NHS1002R2J-ND 273-NHS1002R2J
Description	100 WATTS AL HOUSED 2.2 OHMS 5%
Detailed Description	2.2 Ohms ±5% 100W Wirewound Chassis Mount Resistor
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chassis Mount Resistors
Manufacturer		Ohmite
Series		ARCOL, HS
Packaging		Box
Part Status		Active
Power (Watts)		100W
Tolerance		±5%
Lead Style		Solder Lugs
Features		Non-Inductive, Pulse Withstanding
Package / Case		Axial, Box
Temperature Coefficient		±100ppm/°C
Size / Dimension		2.567" L x 1.870" W (65.20mm x 47.50mm)
Composition		Wirewound
Mounting Feature		Flanges
Coating, Housing Type		Aluminum
Height - Seated (Max)		0.949" (24.10mm)
Resistance		2.2 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NHS100 2R2 J

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.29.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
