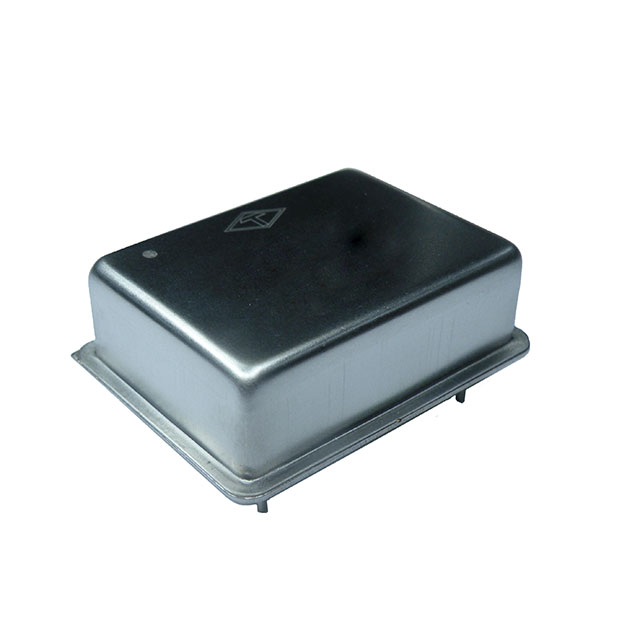

NI-10M-2451

NI-10M-2451

Part Number	NI-10M-2451
Manufacturer	Taitien
Other Part Numbers	1664-1023-ND 1664-1023
Description	XTAL OSC OCXO 10.0000MHZ LVTTL
Detailed Description	10 MHz OCXO LVTTL Oscillator 5V 6-DIP (1.000", 25.40mm), 5 Leads
Manufacturer Standard Lead Time	16 weeks

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Taitien
Series		NI-10M-2400
Packaging		Box
Part Status		Active
Package / Case		6-DIP (1.000", 25.40mm), 5 Leads
Size / Dimension		1.430" L x 1.070" W (36.32mm x 27.18mm)
Mounting Type		Through Hole
Output		LVTTL
Type		OCXO
Operating Temperature		-30°C ~ 70°C
Frequency Stability		±5ppb
Voltage - Supply		5V
Current - Supply (Max)		800mA
Height - Seated (Max)		0.500" (12.70mm)
Frequency		10 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NI-10M-2451
Datasheets		Packaging Product Guide
Datasheets		Oscillator OCXO Part Number Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
