NLAST4051QSR _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	NLAST4051QSR
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	NLAST4051QSROSTR-ND NLAST4051QSROSCT-ND NLAST4051QSROSCT NLAST4051QSROSTR
Description	IC MUX 8:1 26OHM 16QSOP
Detailed Description	1 Circuit IC Switch 8:1 26Ohm 16-QSOP
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

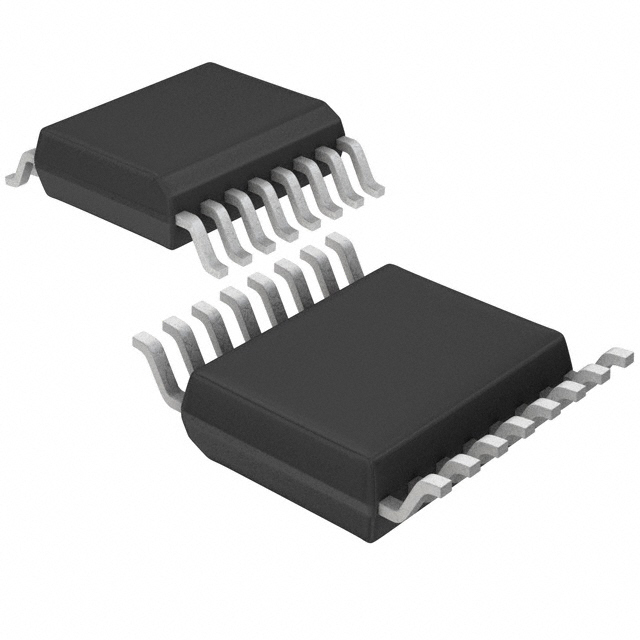

Package / Case		16-SSOP (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C (TA)
On-State Resistance (Max)		26Ohm
-3db Bandwidth		95MHz
Supplier Device Package		16-QSOP
Voltage - Supply, Single (V+)		3V ~ 5V
Voltage - Supply, Dual (V±)		±3V
Charge Injection		12pC
Multiplexer/Demultiplexer Circuit		8:1
Channel-to-Channel Matching (ΔRon)		10Ohm
Switch Time (Ton, Toff) (Max)		23ns, 23ns
Channel Capacitance (CS(off), CD(off))		10pF, 10pF
Current - Leakage (IS(off)) (Max)		100pA
Number of Circuits		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
