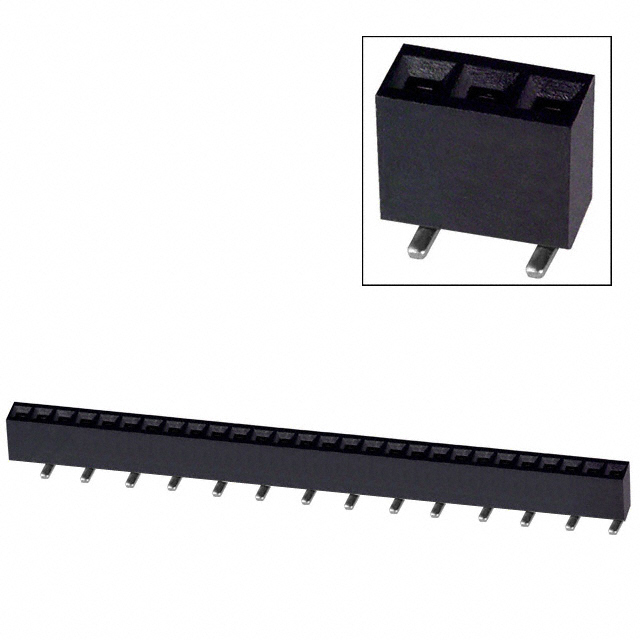

NPTC281KFXC-RC _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	NPTC281KFXC-RC
Manufacturer	Sullins Connector Solutions
Other Part Numbers	S5620-ND S5620
Description	CONN HDR 28POS 0.1 TIN SMD
Detailed Description	28 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Tin
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Sullins Connector Solutions
Series
Packaging		Tube
Part Status		Active
Connector Type		Header, Top or Bottom Entry
Voltage Rating		250V
Current Rating (Amps)		3A
Mounting Type		Surface Mount
Number of Positions		28
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Insulation Height		0.280" (7.10mm)
Insulation Material		Polyamide (PA6T), Nylon 6T
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		NPTC281KFXC-RC
Datasheets		Female Headers .100" Data Sheet
Datasheets		Sullins Connector Solutions RoHS Cert
Datasheets		Sullins Connector Solutions REACH
Datasheets		(N,P)PTC,(N,P)PPC Series SMT

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
