NTB65N02RT4G _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	NTB65N02RT4G
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	NTB65N02RT4GOS-ND NTB65N02RT4GOS 2156-NTB65N02RT4G 2156-NTB65N02RT4G-ONTR-ND ONSONSNTB65N02RT4G
Description	MOSFET N-CH 25V 7.6A D2PAK
Detailed Description	N-Channel 25 V 7.6A (Tc) 1.04W (Ta), 62.5W (Tc) Surface Mount D2PAK
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

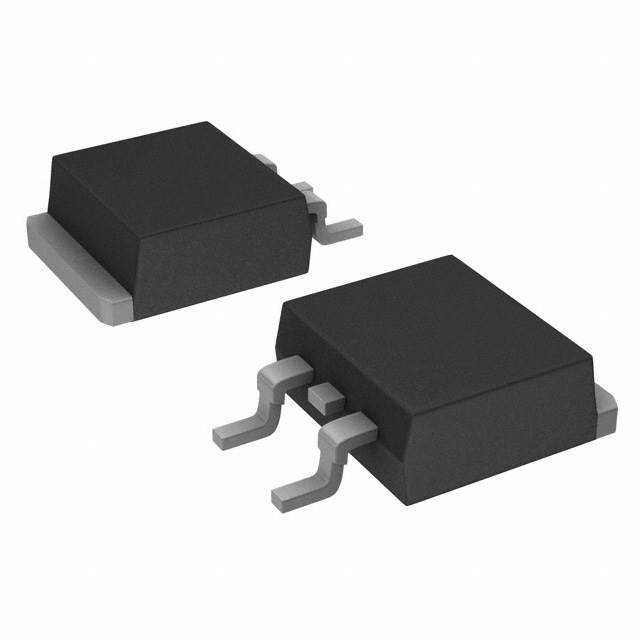

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		7.6A (Tc)
Rds On (Max) @ Id, Vgs		8.2mOhm @ 30A, 10V
Power Dissipation (Max)		1.04W (Ta), 62.5W (Tc)
Vgs(th) (Max) @ Id		2V @ 250µA
Supplier Device Package		D2PAK
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		25 V
Gate Charge (Qg) (Max) @ Vgs		9.5 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		1330 pF @ 20 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
