NTF3055L175T1 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	NTF3055L175T1
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	NTF3055L175T1OS-ND NTF3055L175T1OS
Description	MOSFET N-CH 60V 2A SOT223
Detailed Description	N-Channel 60 V 2A (Ta) 1.3W (Ta) Surface Mount SOT-223 (TO-261)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

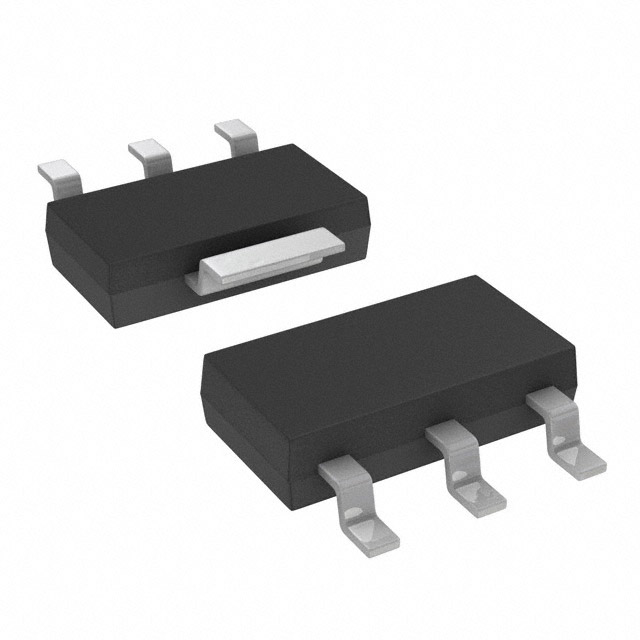

Package / Case		TO-261-4, TO-261AA
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		2A (Ta)
Rds On (Max) @ Id, Vgs		175mOhm @ 1A, 5V
Power Dissipation (Max)		1.3W (Ta)
Vgs(th) (Max) @ Id		2V @ 250µA
Supplier Device Package		SOT-223 (TO-261)
Drive Voltage (Max Rds On, Min Rds On)		5V
Vgs (Max)		±15V
Drain to Source Voltage (Vdss)		60 V
Gate Charge (Qg) (Max) @ Vgs		10 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		270 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
