NTGS4111PT1G _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	NTGS4111PT1G
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	NTGS4111PT1GOSTR-ND NTGS4111PT1GOSCT-ND NTGS4111PT1GOSDKR-ND 2156-NTGS4111PT1G-OS NTGS4111PT1GOSCT ONSONSNTGS4111PT1G NTGS4111PT1GOSDKR NTGS4111PT1GOSTR
Description	MOSFET P-CH 30V 2.6A 6TSOP
Detailed Description	P-Channel 30 V 2.6A (Ta) 630mW (Ta) Surface Mount 6-TSOP
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

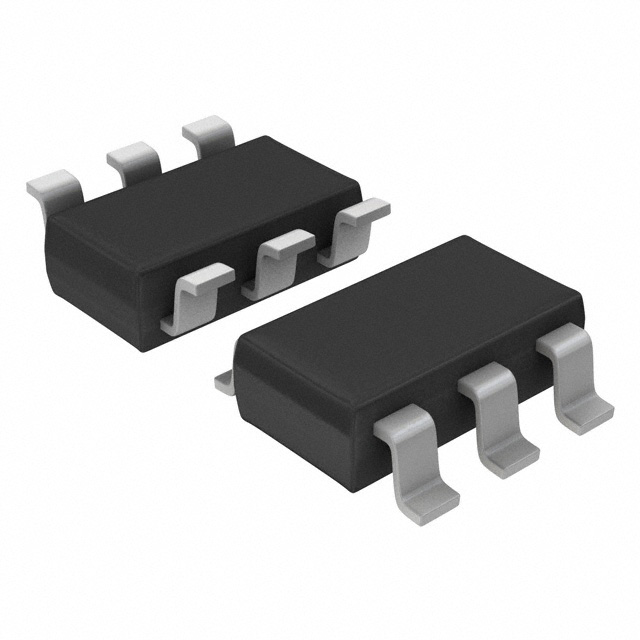

Package / Case		SOT-23-6 Thin, TSOT-23-6
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		2.6A (Ta)
Rds On (Max) @ Id, Vgs		60mOhm @ 3.7A, 10V
Power Dissipation (Max)		630mW (Ta)
Vgs(th) (Max) @ Id		3V @ 250µA
Supplier Device Package		6-TSOP
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		32 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		750 pF @ 15 V

RESOURCE TYPE		LINK
Datasheets		NTGS4111PT1G
Datasheets		Material Declaration NTGS4111PT1G
Datasheets		onsemi REACH
Datasheets		onsemi RoHS
Datasheets		Covering Tape/Material Chg 20/May/2016

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
