NVTYS9D6P04M8LTWG _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	NVTYS9D6P04M8LTWG
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	488-NVTYS9D6P04M8LTWGTR-ND 488-NVTYS9D6P04M8LTWGCT-ND 488-NVTYS9D6P04M8LTWGDKR-ND 488-NVTYS9D6P04M8LTWGCT 488-NVTYS9D6P04M8LTWGTR 488-NVTYS9D6P04M8LTWGDKR
Description	MV8 40V LL SINGLE PCH L
Detailed Description	P-Channel 40 V 16A (Ta), 71A (Tc) 3.9W (Ta), 75W (Tc) Surface Mount 8-LFPAK
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

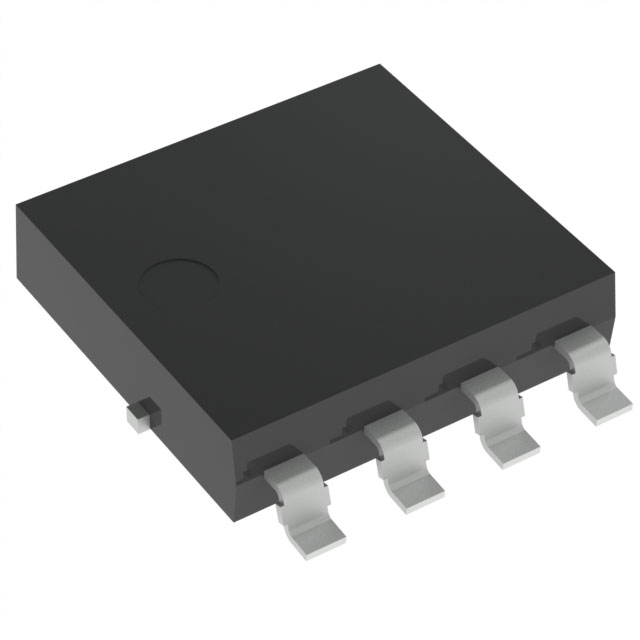

Package / Case		SOT-1205, 8-LFPAK56
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		16A (Ta), 71A (Tc)
Rds On (Max) @ Id, Vgs		9.6mOhm @ 25A, 10V
Power Dissipation (Max)		3.9W (Ta), 75W (Tc)
Vgs(th) (Max) @ Id		3V @ 580µA
Supplier Device Package		8-LFPAK
Grade		Automotive
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		40 V
Gate Charge (Qg) (Max) @ Vgs		35 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		2368 pF @ 25 V
Qualification		AEC-Q101

RESOURCE TYPE		LINK
Datasheets		NVTYS9D6P04M8LTWG

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
