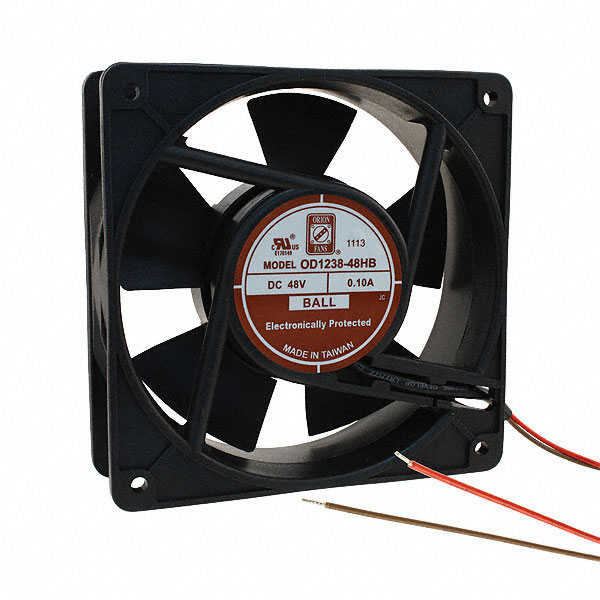

OD1238-48HB

Part Number
OD1238-48HB
Manufacturer Orion Fans
Other Part Numbers
1053-1163-ND
OD1238-48HBX
OD1238PT-48HB
OD123848HB
1053-1163
3937-OD1238-48HB
Description FAN AXIAL 120X38MM 48VDC WIRE
Detailed Description Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 123.9 CFM (3.47m³/min) 2 Wire Leads
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Orion Fans
Series
OD1238
Packaging
Box
Part Status Active
Features Auto Restart
Voltage - Rated 48VDC
Size / Dimension Square - 120mm L x 120mm H
Bearing Type Ball
RPM 2895 RPM
Air Flow 123.9 CFM (3.47m³/min)
Width 38.00mm
Weight 0.572 lb (259.45 g)
Operating Temperature -4 ~ 149°F (-20 ~ 65°C)
Termination 2 Wire Leads
Approval Agency CE, cURus, TUV, UR
Fan Type Tubeaxial
Noise 44.1dB(A)
Static Pressure 0.469 in H2O (116.8 Pa)
Power (Watts) 14 W

Documents & Media

RESOURCE TYPE LINK
Datasheets OD1238-48HB
Datasheets AC,DC Part Number Guide
Datasheets Selector Guide
Datasheets Technical Terms

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 30

Can ship immediately.
