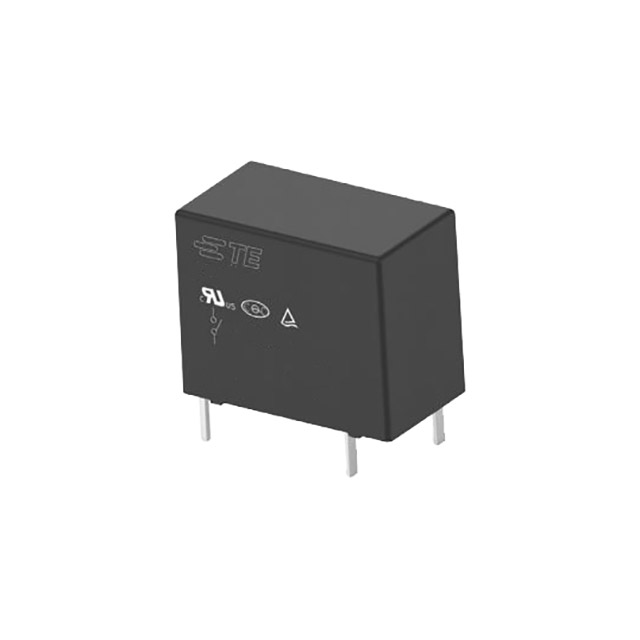

OJS-SS-112HMF, 00000 _ Power Relays, Over 2 Amps_Relays

Part Number	OJS-SS-112HMF, 00000
Manufacturer	TE Connectivity Potter & Brumfield Relays
Other Part Numbers	41-OJS-SS-112HMF,00000-ND 41-OJS-SS-112HMF,00000 2071556-4
Description	RELAY GEN PURPOSE SPST 10A 12V
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		TE Connectivity Potter & Brumfield Relays
Series		OJS, OEG
Packaging		Tray
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		12VDC
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Approval Agency		CQC, cURus, TUV
Relay Type		General Purpose
Coil Current		16.7 mA
Coil Type		Non Latching
Seal Rating		Sealed - Flux Protection
Contact Material		Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Form		SPST-NO (1 Form A)
Contact Rating (Current)		10 A
Switching Voltage		250VAC - Max
Must Release Voltage		0.6 VDC
Must Operate Voltage		9 VDC
Operate Time		15 ms
Release Time		4 ms
Coil Resistance		720 Ohms
Coil Insulation		Class F
Load - Max Switching		2500VA

RESOURCE TYPE		LINK
Datasheets		OJS-SS-112HMF, 00000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
