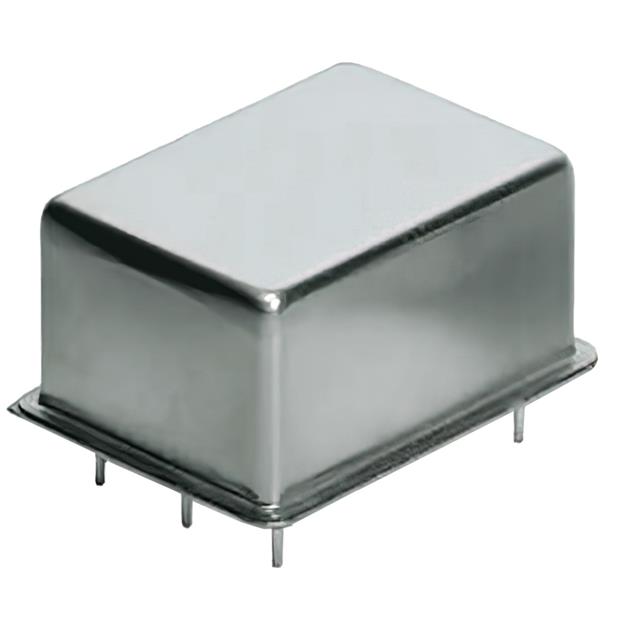

OSI5005-10.0M

OSI5005-10.0M

Part Number	OSI5005-10.0M
Manufacturer	Pletronics, Inc
Other Part Numbers	4289-OSI5005-10.0M-ND 4289-OSI5005-10.0M
Description	CRYSTAL OSC OCXO 10.0M LVTTL
Detailed Description	10 MHz OCXO LVTTL Oscillator 5V 6-DIP (1.000", 25.40mm), 5 Leads
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Pletronics, Inc
Series		OSI5xxx-xx.xxM
Packaging		Box
Part Status		Active
Package / Case		6-DIP (1.000", 25.40mm), 5 Leads
Size / Dimension		1.430" L x 1.070" W (36.32mm x 27.18mm)
Mounting Type		Through Hole
Output		LVTTL
Type		OCXO
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±10ppb
Voltage - Supply		5V
Current - Supply (Max)		850mA
Height - Seated (Max)		0.500" (12.70mm)
Frequency		10 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		OSI5005-10.0M

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5

Can ship immediately.
