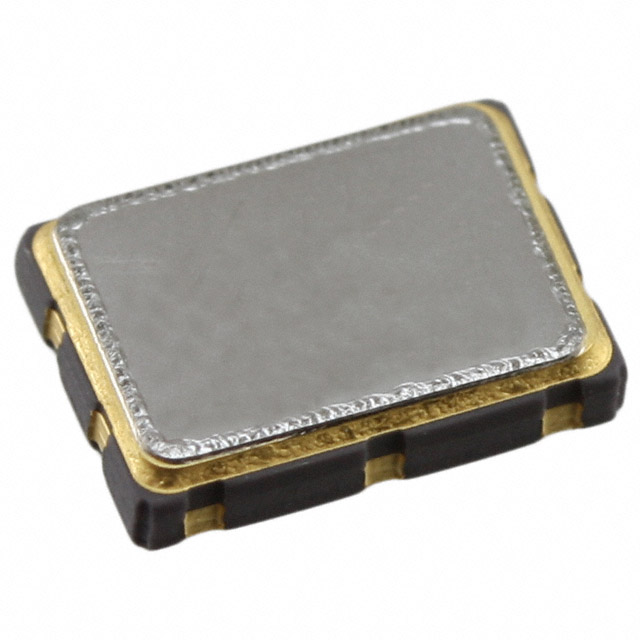

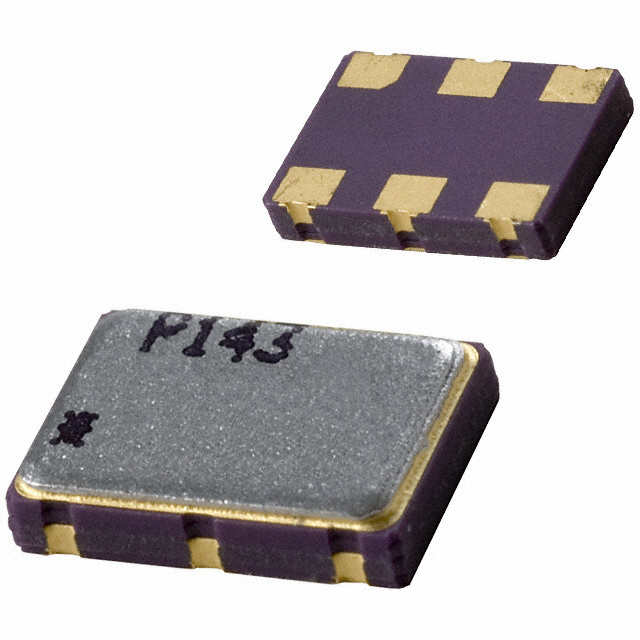

P143-100.0M

P143-100.0M

Part Number	P143-100.0M
Manufacturer	Connor Winfield
Other Part Numbers	CW586-ND P143 100.0M P143100.0M CW586
Description	XTAL OSC XO 100.0000MHZ LVPECL
Detailed Description	100 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Connor Winfield
Series		P
Packaging		Strip
Part Status		Active
Package / Case		6-SMD, No Lead
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		LVPECL
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		0°C ~ 70°C
Frequency Stability		±20ppm
Voltage - Supply		3.3V
Current - Supply (Max)		90mA
Current - Supply (Disable) (Max)		30µA
Height - Seated (Max)		0.079" (2.00mm)
Frequency		100 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		P143-100.0M
Datasheets		LVPECL Series Bottom
Datasheets		PM113,Pxx(2,3) Series Top
Datasheets		Pxx2,pxx3 Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 218

Can ship immediately.
