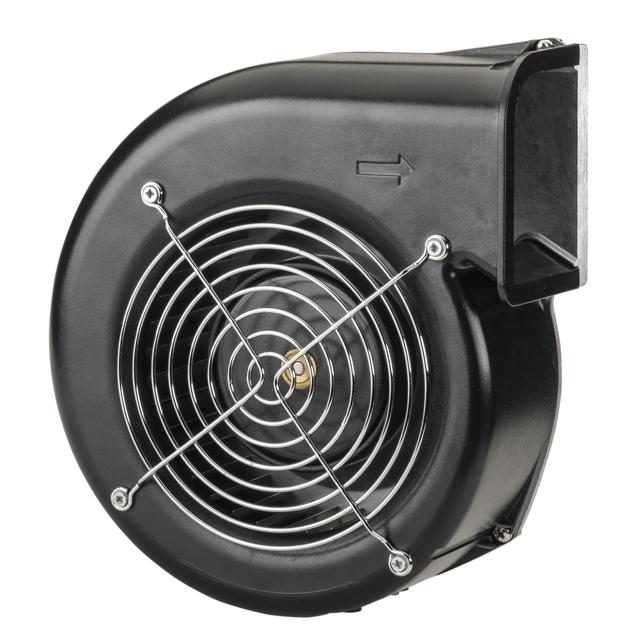

P1970H24BALA2A-38

Part Number
P1970H24BALA2A-38
Manufacturer Pelonis Technologies
Other Part Numbers
3611-P1970H24BALA2A-38-ND
3611-P1970H24BALA2A-38
Description FAN BLOWER 193X72MM 24VDC WIRE
Detailed Description Fan Blower 24VDC Rectangular/Round - 193mm L x 177mm H Ball 127.7 CFM (3.62m³/min) 3 Wire Leads

Product Attributes

Category
Manufacturer Pelonis Technologies
Series
TITAN
Packaging
Bulk
Part Status Active
Features Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach)
Voltage - Rated 24VDC
Size / Dimension Rectangular/Round - 193mm L x 177mm H
Bearing Type Ball
RPM 1800 RPM
Air Flow 127.7 CFM (3.62m³/min)
Width 72.00mm
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Termination 3 Wire Leads
Approval Agency CE, cUL, UL
Fan Type Blower
Noise 55.5dB(A)
Static Pressure 2.020 in H2O (503.1 Pa)
Power (Watts) 42 W

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant
