P89LPC934FDH,529

Part Number
P89LPC934FDH,529
Manufacturer NXP Semiconductors
Other Part Numbers
568-2011-5-ND
935274644529
568-2011-5
P89LPC934FDH-S
Description IC MCU 8BIT 8KB FLASH 28TSSOP
Detailed Description 8051 LPC900 Microcontroller IC 8-Bit 18MHz 8KB (8K x 8) FLASH 28-TSSOP
Datasheet Datasheet

Product Attributes

Category
Manufacturer NXP Semiconductors
Series
LPC900
Packaging
Tube
Part Status Obsolete

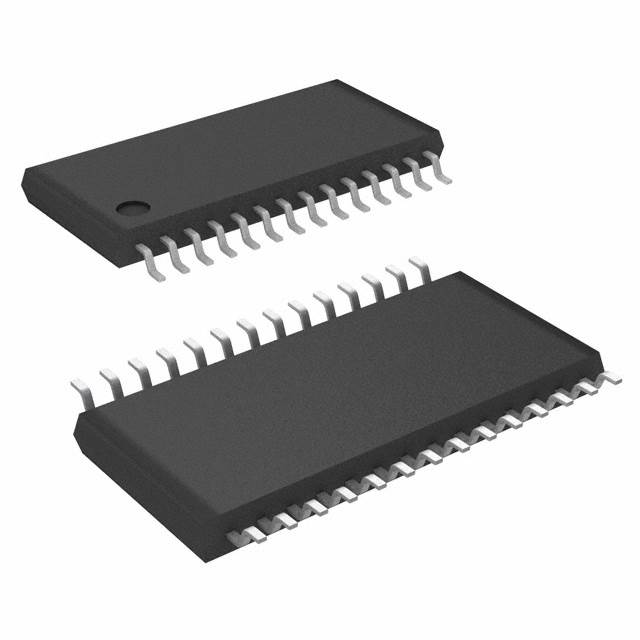

Package / Case 28-TSSOP (0.173", 4.40mm Width)
Mounting Type Surface Mount
Speed 18MHz
Program Memory Size 8KB (8K x 8)
RAM Size 256 x 8
Operating Temperature -40°C ~ 85°C (TA)
Oscillator Type Internal
Program Memory Type FLASH
Core Processor 8051
Data Converters A/D 4x8b; D/A 1x8b
Core Size 8-Bit
Voltage - Supply (Vcc/Vdd) 2.4V ~ 3.6V
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, LED, POR, PWM, WDT
Supplier Device Package 28-TSSOP
Number of I/O 26
DigiKey Programmable Not Verified

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
