PA4300.184NLT

Part Number
PA4300.184NLT
Manufacturer Pulse Larsen Antenna
Other Part Numbers
553-2417-2-ND
553-2417-1-ND
553-2417-6-ND
553-2417-6
-PA4300.184NLT
553-2417-2
553-2417-1
Description FIXED IND 180UH 305MA 1.05OHM SM

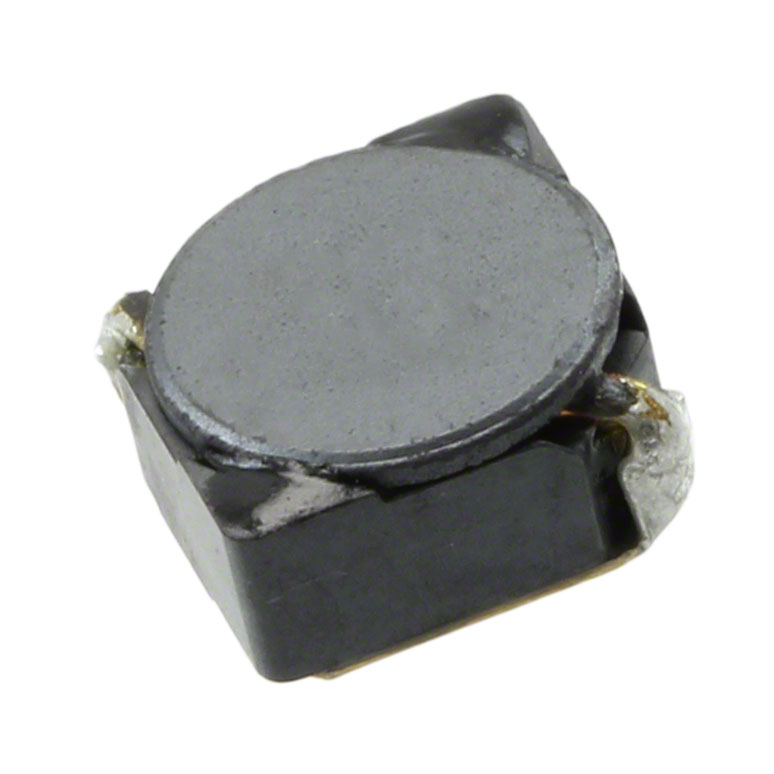

Detailed Description 180 µH Shielded Drum Core, Wirewound Inductor 305 mA 1.05Ohm Max Nonstandard
Manufacturer Standard Lead Time 11 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pulse Larsen Antenna
Series
PA4300.XXXNLT
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.240" L x 0.240" W (6.10mm x 6.10mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 1.05Ohm Max
Material - Core Ferrite
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.118" (3.00mm)
Inductance 180 µH
Current Rating (Amps) 305 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
