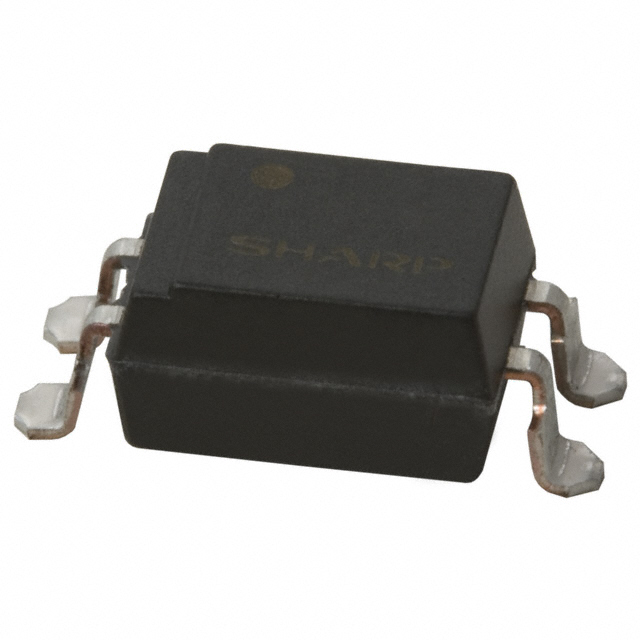

PC123P2J000F _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	PC123P2J000F
Manufacturer	Sharp Microelectronics
Other Part Numbers	425-2076-2-ND 425-2076-1-ND 425-2076-6-ND 425-2076-6 425-2076-2 425-2076-1
Description	OPTOISOLATR 5KV TRANSISTOR 4-SMD
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Sharp Microelectronics
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		100% @ 5mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		250% @ 5mA
Supplier Device Package		4-SMD
Voltage - Output (Max)		70V
Rise / Fall Time (Typ)		4µs, 3µs
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
