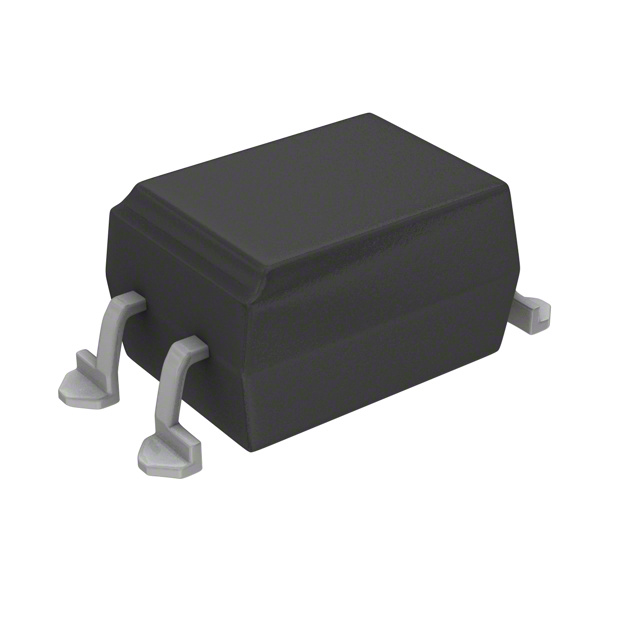

PC3H510NIP0F _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	PC3H510NIP0F
Manufacturer	Sharp Microelectronics
Other Part Numbers	425-2106-2-ND 425-2106-1-ND 425-2106-6-ND 425-2106-1 425-2106-2 425-2106-6
Description	OPTOISO 2.5KV DARLNG 4-MINI-FLAT
Detailed Description	Optoisolator Darlington Output 2500Vrms 1 Channel 4-Mini-Flat

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Sharp Microelectronics
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Discontinued
Package / Case		4-SOIC (0.173", 4.40mm Width)
Output Type		Darlington
Mounting Type		Surface Mount
Operating Temperature		-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		80mA
Voltage - Isolation		2500Vrms
Current Transfer Ratio (Min)		600% @ 500µA
Vce Saturation (Max)		1V
Supplier Device Package		4-Mini-Flat
Voltage - Output (Max)		35V
Rise / Fall Time (Typ)		60µs, 53µs
Number of Channels		1
Current - DC Forward (If) (Max)		10 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer for sale.
