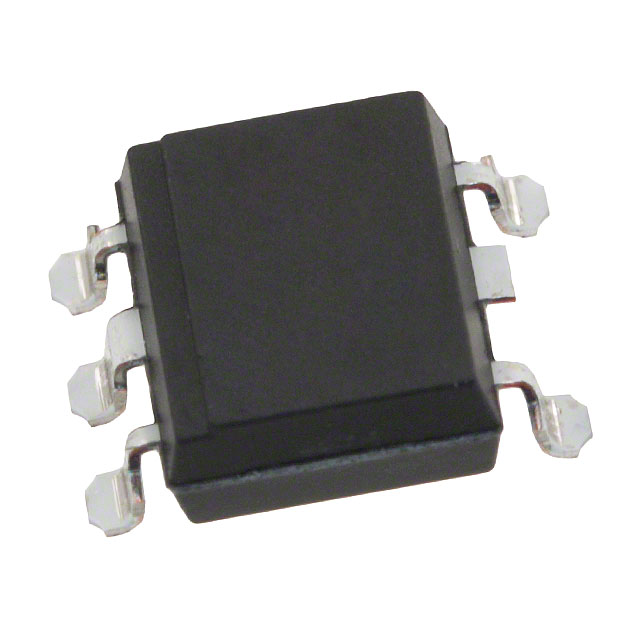

PC3SD21YXZCF _ Triac, SCR Output Optoisolators_Optoisolators_Isolators

Part Number	PC3SD21YXZCF
Manufacturer	Sharp Microelectronics
Other Part Numbers	425-2135-5-ND 425-2135-5
Description	OPTOISOLATOR 5KV TRIAC 6SMD
Detailed Description	Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD
Datasheet	Datasheet

Category		Isolators Optoisolators Triac, SCR Output Optoisolators
Manufacturer		Sharp Microelectronics
Series
Packaging		Tube
Part Status		Obsolete
Package / Case		6-SMD
Output Type		Triac
Mounting Type		Surface Mount
Operating Temperature		-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Voltage - Isolation		5000Vrms
Approval Agency		CSA, UR, VDE
Current - Hold (Ih)		3.5mA
Turn On Time		50µs (Max)
Supplier Device Package		6-SMD
Zero Crossing Circuit		Yes
Static dV/dt (Min)		1kV/µs
Current - LED Trigger (Ift) (Max)		5mA
Number of Channels		1
Current - On State (It (RMS)) (Max)		100 mA
Voltage - Off State		600 V
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK
Datasheets		Optoelectronic 30/Nov/2012

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
