PCB.RPSMAFRA.HT _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	PCB.RPSMAFRA.HT
Manufacturer	Taoglas
Other Part Numbers	931-1360-ND PCBRPSMAFRAHT 931-1360

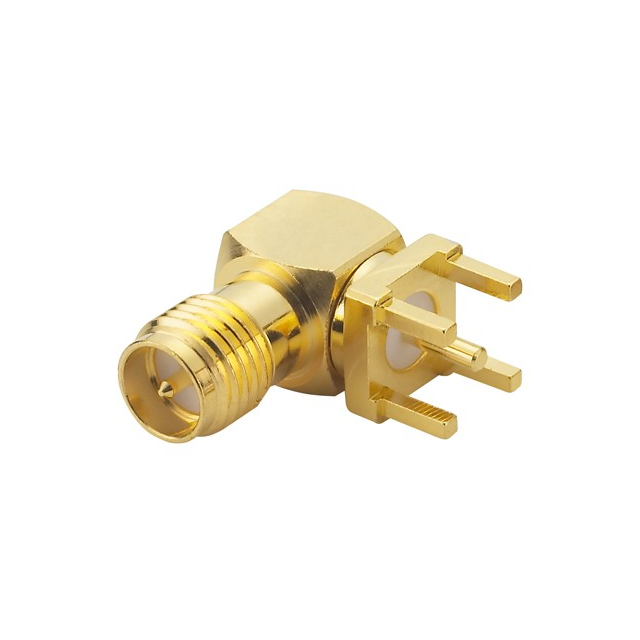

Description	CONN RP-SMA JACK R/A 50 OHM PCB
Detailed Description	RP-SMA Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
Manufacturer Standard Lead Time	11 weeks

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Taoglas
Series
Packaging		Tray
Part Status		Active
Connector Type		Jack, Male Pin
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Through Hole, Right Angle
Fastening Type		Threaded
Connector Style		RP-SMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Shield Termination		Solder
Center Contact Material		Brass
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		6 GHz
Number of Ports		1
Voltage Rating		500 V

RESOURCE TYPE		LINK
Datasheets		PCB.RPSMAFRA.HT
Datasheets		2023 Cable Assemblies Product Guide
Datasheets		Taoglas Limited RoHS
Datasheets		Label 25/May/2018

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
