Part Number | PCB.SMAFST.2H.B.HT |
---|---|
Manufacturer | Taoglas |
Other Part Numbers | 931-1179-ND 931-1179 PCBSMAFST2HBHT |

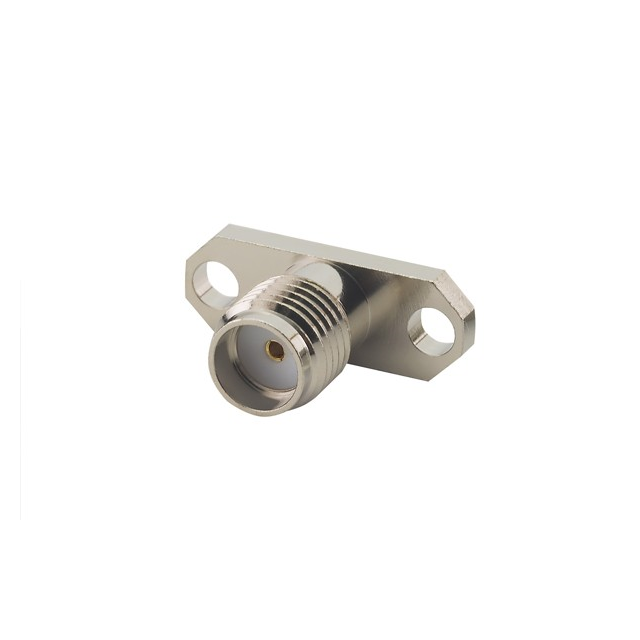

Description | CONN SMA JACK STR 50 OHM SOLDER |
Detailed Description | SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder |
Manufacturer Standard Lead Time | 11 weeks |
Category | ||
---|---|---|
Manufacturer | Taoglas | |
Series | ||
Packaging | Tray | |
Part Status | Active | |
Connector Type | Jack, Female Socket | |
Contact Termination | Solder | |
Impedance | 50 Ohms | |
Mounting Type | Panel Mount | |
Fastening Type | Threaded | |
Connector Style | SMA | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Mounting Feature | Flange | |
Body Material | Brass | |
Housing Color | Silver | |
Shield Termination | Solder | |
Center Contact Material | Phosphor Bronze | |
Body Finish | Nickel | |
Center Contact Plating | Gold | |
Frequency - Max | 12.4 GHz | |
Number of Ports | 1 | |
Voltage Rating | 335 V |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
California Prop 65 | California Prop 65 Information | |
ECCN | EAR99 | |
HTSUS | 8536.69.4010 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $3.65 | $3.65 |
100 | $3.56 | $356.00 |
500 | $3.33 | $1,665.00 |
1,000 | $3.13 | $3,130.00 |
