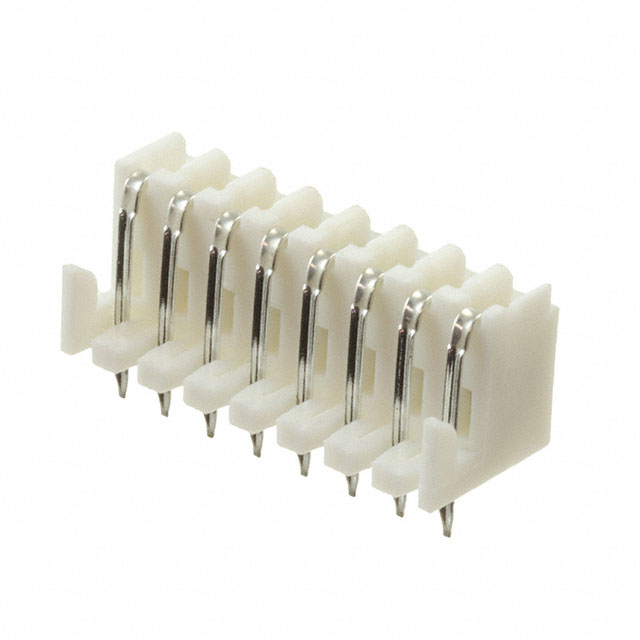

PCE-C-08 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	PCE-C-08
Manufacturer	Adam Tech
Other Part Numbers	2057-PCE-C-08-ND 2057-PCE-C-08
Description	RECEPTICAL WITH HOOKS 8P 2.54MM
Detailed Description	8 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Adam Tech
Series		PCE
Packaging		Tray
Part Status		Active
Features		Board Hooks
Connector Type		Receptacle, Bottom Entry
Voltage Rating		250VAC
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		8
Style		Board to Board or Cable
Operating Temperature		-40°C ~ 105°C
Applications		Automotive, General Purpose, Medical, Telecommunications
Contact Type		Non-Gendered
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Natural
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.146" (3.70mm)
Insulation Height		0.276" (7.00mm)
Insulation Material		Polyamide (PA66), Nylon 6/6
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		PCE-C-08

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Tray	1	$1.45	$1.45
Total Amount: $1.45

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.45	$1.45
10	$1.23	$12.30
