PCF8537AH/1,518

Part Number
PCF8537AH/1,518
Manufacturer NXP Semiconductors
Other Part Numbers
568-9821-2-ND
568-9821-1-ND
568-9821-6-ND
568-9821-6
PCF8537AH1518
568-9821-1
568-9821-2
935297897518
Description IC DRVR 7 SEGMENT 64TQFP
Detailed Description LCD Driver 64-TQFP (10x10)
Manufacturer Standard Lead Time 18 weeks

Product Attributes

Category
Manufacturer NXP Semiconductors
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

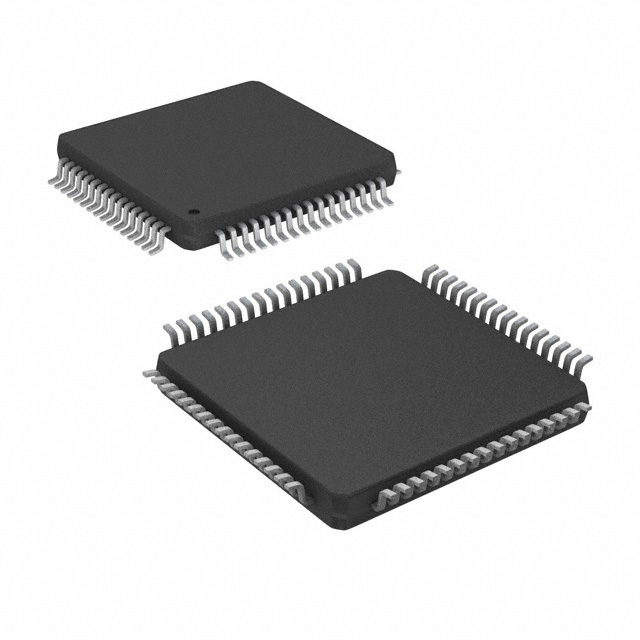

Package / Case 64-TQFP
Display Type LCD
Mounting Type Surface Mount
Interface I2C
Configuration 7 Segment + DP, 14 Segment + DP + AP, Dot Matrix
Operating Temperature -40°C ~ 80°C
Voltage - Supply 1.8V ~ 5.5V
Digits or Characters 22 Characters, 44 Characters, 352 Elements
Supplier Device Package 64-TQFP (10x10)
Current - Supply 90 µA

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1150

Can ship immediately.
