PCM3002E

PCM3002E

Part Number	PCM3002E
Manufacturer	Texas Instruments
Other Part Numbers	296-41602-5-ND PCM3002EG4 PCM3002E-ND -PCM3002EG4-NDR PCM3002E-NDR PCM3002EG4-ND 2156-PCM3002E -PCM3002E-ND -PCM3002EG4 TEXTISPCM3002E 296-41602-5 -PCM3002E-NDR
Description	IC CODEC AUDIO 20BIT 24SSOP
Detailed Description	Stereo Audio Interface 20 b Serial 24-SSOP
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Interface CODECS
Manufacturer		Texas Instruments
Series
Packaging		Tube
Part Status		Active

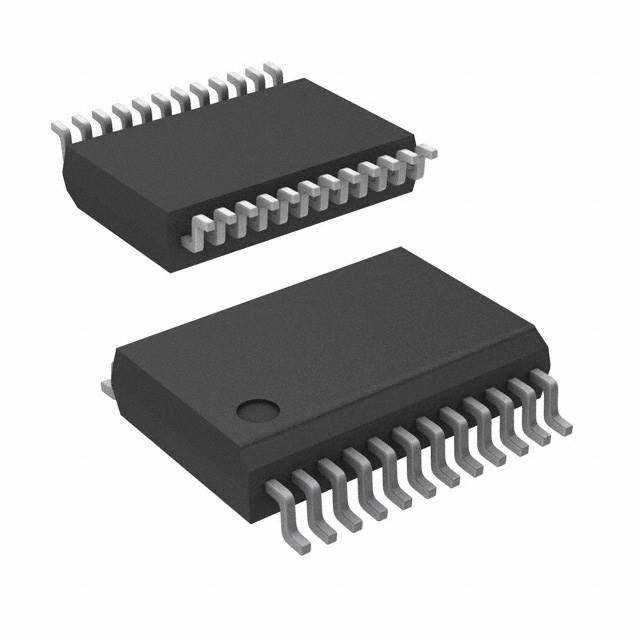

Package / Case		24-SSOP (0.209", 5.30mm Width)
Mounting Type		Surface Mount
Type		Stereo Audio
Data Interface		Serial
Operating Temperature		-25°C ~ 85°C
Voltage - Supply, Analog		2.7V ~ 3.6V
Voltage - Supply, Digital		2.7V ~ 3.6V
Resolution (Bits)		20 b
Dynamic Range, ADCs / DACs (db) Typ		90 / 94
Number of ADCs / DACs		2 / 2
S/N Ratio, ADCs / DACs (db) Typ		90 / 94
Sigma Delta		Yes
Supplier Device Package		24-SSOP

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Lead Frame Base Update 02/Apr/2015
Datasheets		Marking Change 24/Mar/2021

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 114

Can ship immediately.
