PCMF3HDMI14SZ _ EMI/RFI Filters (LC, RC Networks)_Filters

Part Number	PCMF3HDMI14SZ
Manufacturer	NXP Semiconductors
Other Part Numbers	2156-PCMF3HDMI14SZ-ND 2156-PCMF3HDMI14SZ NEXNXPPCMF3HDMI14SZ
Description	CMC

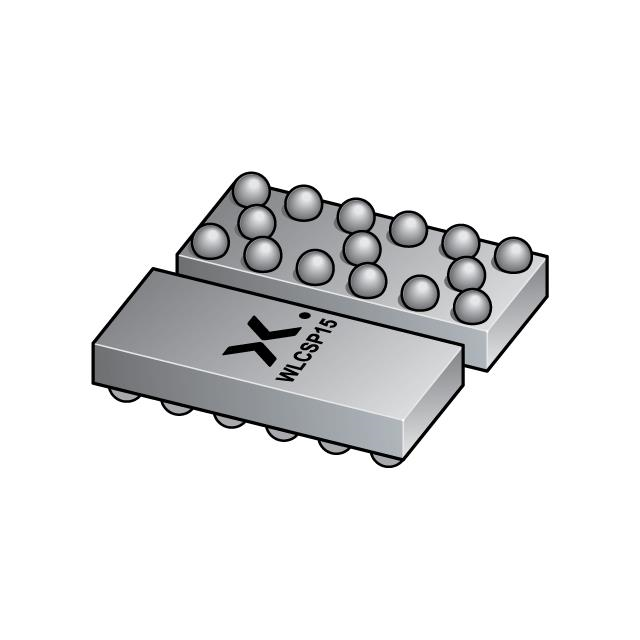

Detailed Description	LC EMI Filter 2nd Order Low Pass 3 Channel R = 3Ohm, C = 0.25pF 15-UFBGA, WLCSP
Datasheet	Datasheet

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		NXP Semiconductors
Series		PCMFXHDMI14S
Packaging		Bulk
Part Status		Active
Package / Case		15-UFBGA, WLCSP
Size / Dimension		0.093" L x 0.046" W (2.37mm x 1.17mm)
Mounting Type		Surface Mount
Type		Low Pass
Operating Temperature		-40°C ~ 85°C
Values		R = 3Ohm, C = 0.25pF
Height		0.024" (0.60mm)
Attenuation Value		0.3dB @ 1MHz
Filter Order		2nd
Applications		Data Lines for Mobile Devices
Technology		LC
Center / Cutoff Frequency		6GHz (Cutoff)
Resistance - Channel (Ohms)		3
ESD Protection		Yes
Number of Channels		3
