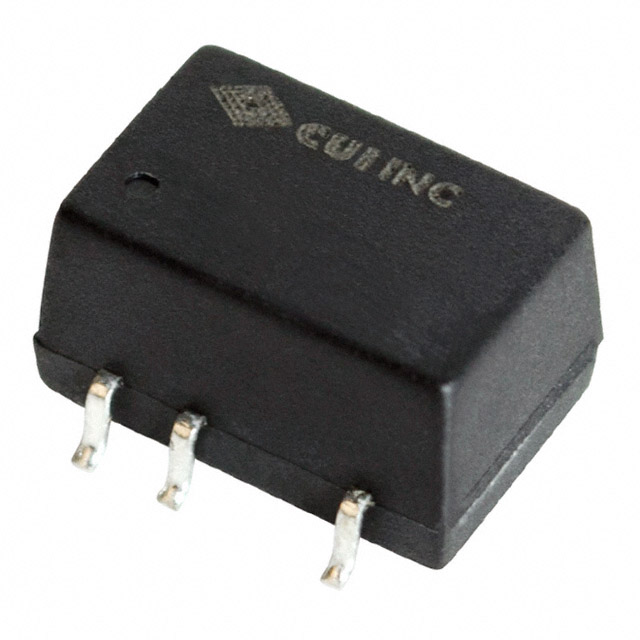

PDS1-S12-S12-M _ DC DC Converters_Power Supplies

Part Number	PDS1-S12-S12-M
Manufacturer	CUI Inc
Other Part Numbers	102-4542-ND 102-4542 2266-PDS1-S12-S12-M PDS1S12S12M PDS1-S12-S12-M-ND
Description	DC DC CONVERTER 12V 1W
Detailed Description	Isolated Module DC DC Converter 1 Output 12V 84mA 10.8V - 13.2V Input

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		CUI Inc
Series		PDS1-M (1W)
Packaging		Tube
Part Status		Last Time Buy
Features		SCP
Package / Case		8-SMD Module, 5 Leads
Size / Dimension		0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Mounting Type		Surface Mount
Type		Isolated Module
Operating Temperature		-40°C ~ 105°C (With Derating)
Applications		ITE (Commercial)
Voltage - Input (Max)		13.2V
Approval Agency		EN, UL
Efficiency		81%
Current - Output (Max)		84mA
Voltage - Input (Min)		10.8V
Voltage - Output 1		12V
Power (Watts)		1 W
Number of Outputs		1
Voltage - Isolation		1.5 kV
Standard Number		55024; 55032 Class A; 60950-1

RESOURCE TYPE		LINK
Datasheets		PDS1-S12-S12-M
Datasheets		Product Discontinuation 16/JAN/2024

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
