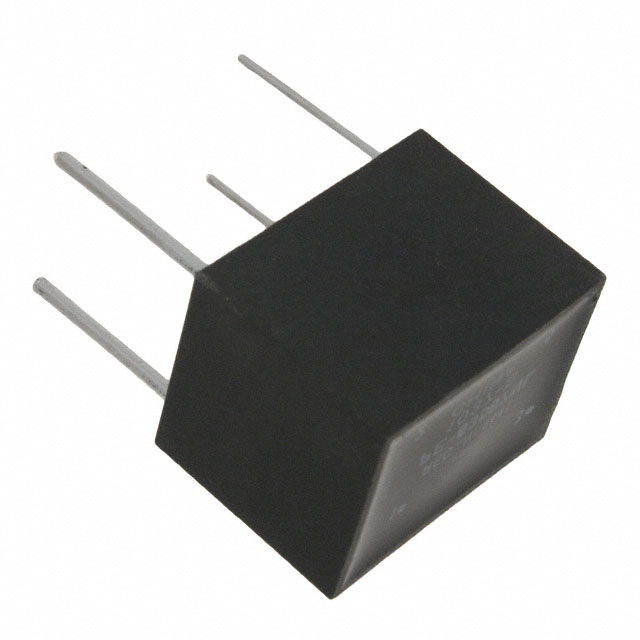

PE-63587NL

PE-63587NL

Part Number	PE-63587NL
Manufacturer	Pulse Larsen Antenna
Other Part Numbers	553-1548-ND PE63587NL 553-1548 PE-63587NL-ND
Description	CURR SENSE XFMR 20A T/H
Detailed Description	20 A Current Sense Transformer 20kHz ~ 200kHz 100Ohm Primary, 1.4Ohm Secondary 20 mH Through Hole
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Current Sense Transformers
Manufacturer		Pulse Larsen Antenna
Series		THT
Packaging		Tray
Part Status		Active
Size / Dimension		0.900" L x 0.700" W (22.86mm x 17.78mm)
Mounting Type		Through Hole
Type		Invasive
Termination Style		PC Pin
DC Resistance (DCR)		100Ohm Primary, 1.4Ohm Secondary
Frequency Range		20kHz ~ 200kHz
Height - Seated (Max)		0.700" (17.78mm)
Current Ratio		100:1
Inductance		20 mH
Current Rating (Amps)		20 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PE-63587NL
Datasheets		Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.2000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

In Stock: 732

Can ship immediately.
