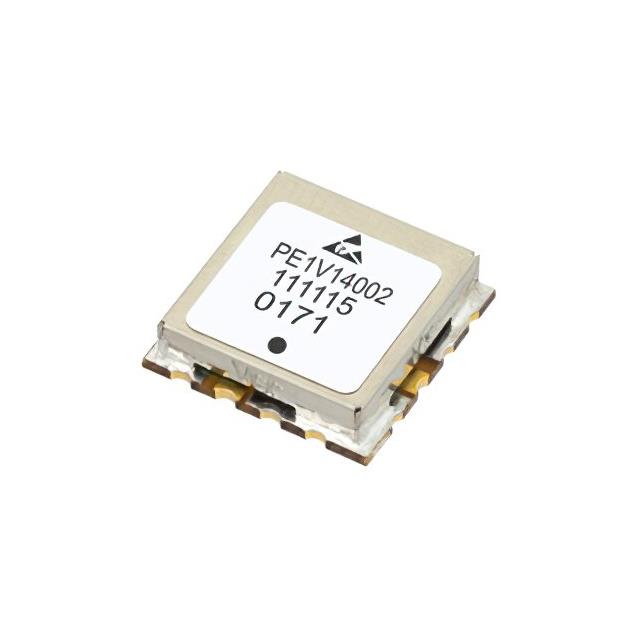

PE1V14002

Part Number
PE1V14002
Manufacturer Pasternack
Other Part Numbers
3985-PE1V14002-ND
3985-PE1V14002
Description Surface Mount (SMT) Voltage Cont
Detailed Description 1.71GHz Center Frequency 0 V ~ 4.5 V Voltage Controlled Oscillator 5 ±1 dBm -18 2nd Harmonic Typ (dBc)
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pasternack
Series
Packaging
Retail Package
Part Status Active
Package / Case 16-SMD, No Lead
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Operating Temperature -40°C ~ 85°C
Voltage - Supply 5V
Height 0.126" (3.20mm)
Frequency Range 1.57 ~ 1.85GHz
2nd Harmonic, Typ (dBc) -18
Frequency - Center 1.71GHz
Icc Max 16.5mA
Pushing (MHz/V) 1.8
Phase Noise Typ (dBc/Hz) -101
Power (dBm) 5 ±1
Tuning Voltage (VDC) 0 V ~ 4.5 V

Documents & Media

RESOURCE TYPE LINK
Datasheets PE1V14002

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION

Available To Order
