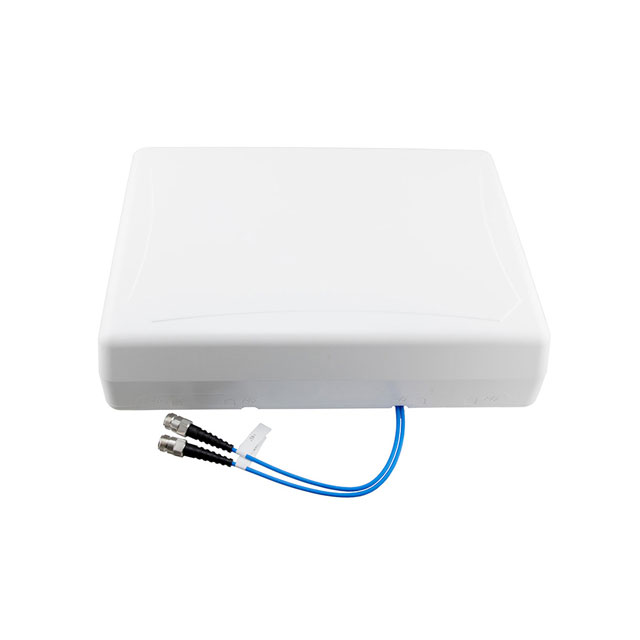

PE51FP1012

PE51FP1012

Part Number	PE51FP1012
Manufacturer	Pasternack
Other Part Numbers	3985-PE51FP1012-ND 3985-PE51FP1012
Description	5.5 DBI PANEL ANTEANNS 2XN (F)
Detailed Description	657.5MHz, 829MHz, 2.205GHz, 3.75GHz, 5.45GHz 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M Panel RF Antenna 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz 5.5dBi, 6dBi, 7dBi, 6dBi, 6.5dBi N Type Female (2) Wall Mount
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Pasternack
Series
Packaging		Bag
Part Status		Active
Features		Cable - 300mm
Mounting Type		Wall Mount
Frequency Range		617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz
Applications		5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M
Gain		5.5dBi, 6dBi, 7dBi, 6dBi, 6.5dBi
Termination		N Type Female (2)
Number of Bands		5
VSWR		2
Antenna Type		Panel
Height (Max)		3.940" (100.08mm)
Frequency Group		Wide Band
Frequency (Center/Band)		657.5MHz, 829MHz, 2.205GHz, 3.75GHz, 5.45GHz
RF Family/Standard		Cellular
Power - Max		50 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PE51FP1012

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.79.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		Vendor Undefined
RoHS Status		Not applicable
