PEMI2STD/CK,115 _ EMI/RFI Filters (LC, RC Networks)_Filters

Part Number	PEMI2STD/CK,115
Manufacturer	NXP Semiconductors
Other Part Numbers	568-10594-2-ND 568-10594-2 NEXNXPPEMI2STD/CK,115 568-10594-6 2156-PEMI2STD/CK115-NXTR 934064059115 PEMI2STD/CK,115-ND 568-10594-1 PEMI2STDCK115
Description	FILTER RC(PI) 20 OHM/13.5PF SMD
Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 20Ohms, C = 13.5pF (Total) SOT-665
Datasheet	Datasheet

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		NXP Semiconductors
Series		PEMI2STD
Packaging		Tape & Reel (TR)
Part Status		Obsolete

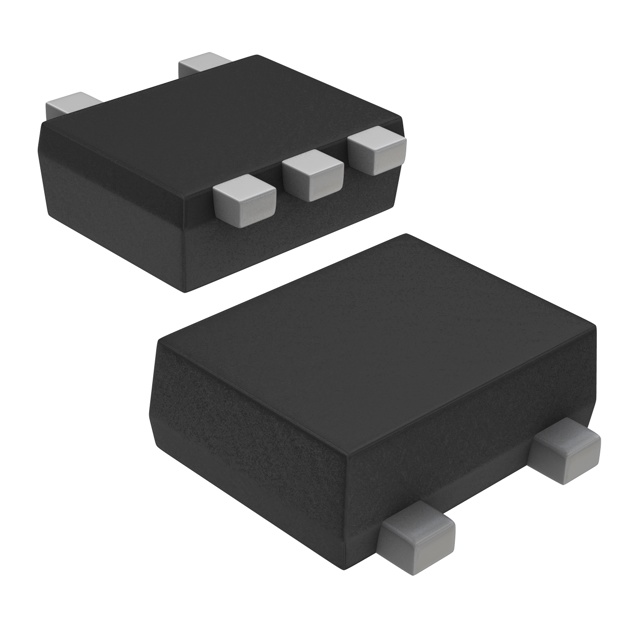

Package / Case		SOT-665
Size / Dimension		0.063" L x 0.047" W (1.60mm x 1.20mm)
Mounting Type		Surface Mount
Type		Low Pass
Operating Temperature		-40°C ~ 85°C
Values		R = 20Ohms, C = 13.5pF (Total)
Height		0.024" (0.60mm)
Filter Order		2nd
Applications		Data Lines for Mobile Devices
Technology		RC (Pi)
Resistance - Channel (Ohms)		20
ESD Protection		Yes
Number of Channels		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
