PEMI6QFN/HK,132 _ EMI/RFI Filters (LC, RC Networks)_Filters

Part Number	PEMI6QFN/HK,132
Manufacturer	NXP Semiconductors
Other Part Numbers	2156-PEMI6QFN/HK132-NXTR-ND 2156-PEMI6QFN/HK132-NXTR NEXNXPPEMI6QFN/HK,132 568-10669-1 568-10669-2 934064868132 PEMI6QFN/HK,132-ND PEMI6QFNHK132 568-10669-6
Description	FILTER RC(PI) 45 OHM/13.5PF SMD
Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 45Ohms, C = 13.5pF (Total) 12-XFDFN
Datasheet	Datasheet

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		NXP Semiconductors
Series		PEMIxQFN
Packaging		Bulk
Part Status		Obsolete

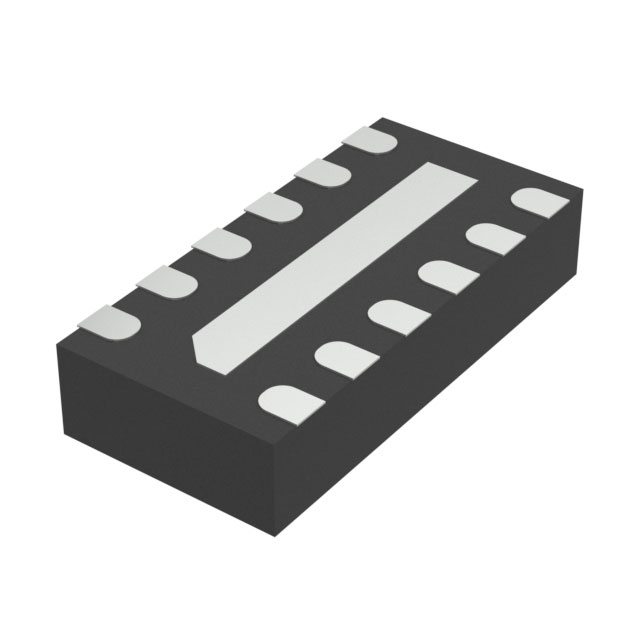

Package / Case		12-XFDFN
Size / Dimension		0.098" L x 0.047" W (2.50mm x 1.20mm)
Mounting Type		Surface Mount
Type		Low Pass
Operating Temperature		-40°C ~ 85°C
Values		R = 45Ohms, C = 13.5pF (Total)
Height		0.020" (0.50mm)
Attenuation Value		13dB @ 800MHz ~ 3GHz
Filter Order		2nd
Applications		LAN, PCS, WAN
Technology		RC (Pi)
Resistance - Channel (Ohms)		45
ESD Protection		Yes
Number of Channels		6

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
