PEMI8QFN/LE,132 _ EMI/RFI Filters (LC, RC Networks)_Filters

Part Number	PEMI8QFN/LE,132
Manufacturer	NXP Semiconductors
Other Part Numbers	568-10707-2-ND 934064898132 2156-PEMI8QFN/LE132-NXTR-ND 568-10707-2 PEMI8QFNLE132 568-10707-1 PEMI8QFN/LE,132-ND NEXNXPPEMI8QFN/LE,132 568-10707-6 2156-PEMI8QFN/LE132 2156-PEMI8QFN/LE,132-ND
Description	FILTER RC(PI) 65 OHM/8.5PF SMD
Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 65Ohms, C = 8.5pF (Total) 16-XFDFN Exposed Pad

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		NXP Semiconductors
Series		PEMIxQFN
Packaging		Tape & Reel (TR)
Part Status		Obsolete

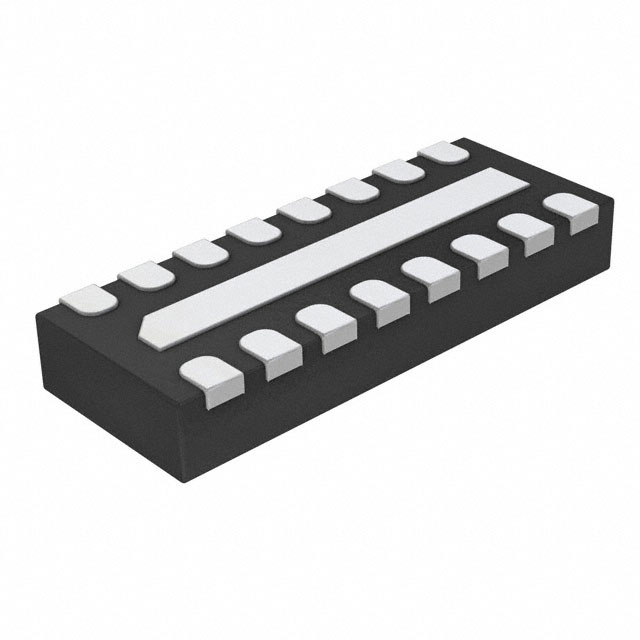

Package / Case		16-XFDFN Exposed Pad
Size / Dimension		0.130" L x 0.047" W (3.30mm x 1.20mm)
Mounting Type		Surface Mount
Type		Low Pass
Operating Temperature		-40°C ~ 85°C
Values		R = 65Ohms, C = 8.5pF (Total)
Height		0.020" (0.50mm)
Attenuation Value		11dB @ 800MHz ~ 3GHz
Filter Order		2nd
Applications		LAN, PCS, WAN
Technology		RC (Pi)
Resistance - Channel (Ohms)		65
ESD Protection		Yes
Number of Channels		8

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
