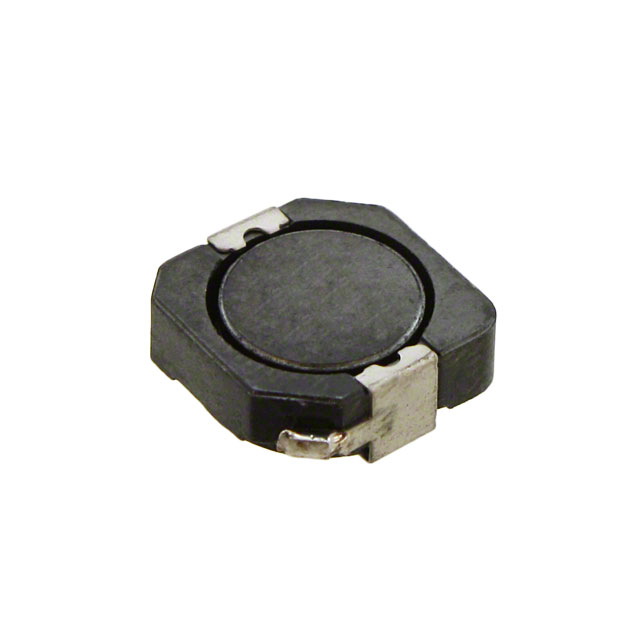

PF0560.153NLT

PF0560.153NLT

Part Number	PF0560.153NLT
Manufacturer	Pulse Larsen Antenna
Other Part Numbers	553-1750-2-ND 553-1750-1-ND 553-1750-6-ND 553-1750-2 PF0560153NLT 553-1750-6 553-1750-1 PF0560.153NLT-ND
Description	FIXED IND 15UH 3.1A 50 MOHM SMD
Detailed Description	15 µH Shielded Wirewound Inductor 3.1 A 50mOhm Max Nonstandard
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Pulse Larsen Antenna
Series		PF0560NL
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±30%
Package / Case		Nonstandard
Size / Dimension		0.409" L x 0.406" W (10.40mm x 10.30mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		50mOhm Max
Frequency - Self Resonant		19MHz
Current - Saturation (Isat)		3.6A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.157" (4.00mm)
Inductance		15 µH
Current Rating (Amps)		3.1 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4102

Can ship immediately.
