PF0581.224NLT

PF0581.224NLT

Part Number
PF0581.224NLT
Manufacturer Pulse Larsen Antenna
Other Part Numbers
PF0581.224NLT-ND
Description FIXED IND 220UH 530MA 721MOHM SM

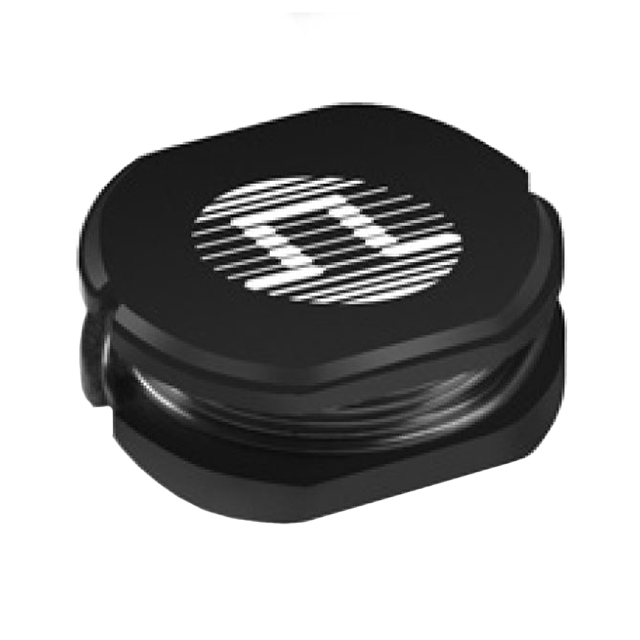

Detailed Description 220 µH Unshielded Wirewound Inductor 530 mA 721mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pulse Larsen Antenna
Series
PF0581NL
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.406" L x 0.367" W (10.32mm x 9.32mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 721mOhm Max
Current - Saturation (Isat) 530mA
Height - Seated (Max) 0.174" (4.42mm)
Inductance 220 µH
Current Rating (Amps) 530 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets PF0581.224NLT
Datasheets Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
