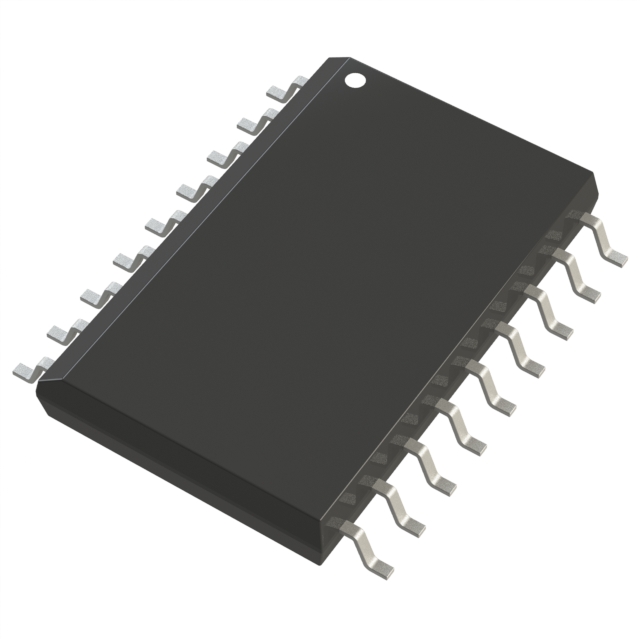

PIC16C716-20I/SO _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	PIC16C716-20I/SO
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	PIC16C716-20I/SO-ND PIC16C71620ISO PIC16C716-20I/SO-NDR
Description	IC MCU 8BIT 3.5KB OTP 18SOIC
Detailed Description	PIC PIC® 16C Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) OTP 18-SOIC
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		PIC® 16C
Packaging		Tube
Part Status		Active
Package / Case		18-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Speed		20MHz
Program Memory Size		3.5KB (2K x 14)
RAM Size		128 x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		External
Program Memory Type		OTP
Core Processor		PIC
Data Converters		A/D 4x8b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		4V ~ 5.5V
Peripherals		Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package		18-SOIC
Number of I/O		13
DigiKey Programmable		Verified

RESOURCE TYPE		LINK
Datasheets		PIC16C716-20I/SO
Datasheets		MPLAB® ICE2000 Spec
Datasheets		Tips N Tricks Guide
Datasheets		Microchip REACH
Datasheets		Microchip RoHS
Datasheets		Label and Packing Changes 23/Sep/2015
Datasheets		MBB/Label Chgs 16/Nov/2018
Datasheets		PIC16C712, 716 Rev A Silicon Errata

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
