PIC16CE625-20/P _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	PIC16CE625-20/P
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	PIC16CE625-20/P-ND PIC16CE625-20/P-NDR
Description	IC MCU 8BIT 3.5KB OTP 18DIP
Detailed Description	PIC PIC® 16C Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) OTP 18-PDIP
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		PIC® 16C
Packaging		Tube
Part Status		Active

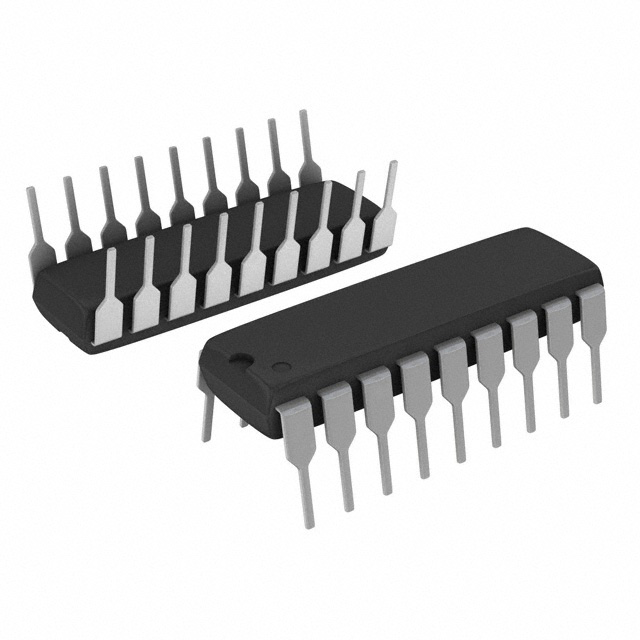

Package / Case		18-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Speed		20MHz
Program Memory Size		3.5KB (2K x 14)
RAM Size		128 x 8
Operating Temperature		0°C ~ 70°C (TA)
Oscillator Type		External
Program Memory Type		OTP
EEPROM Size		128 x 8
Core Processor		PIC
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		3V ~ 5.5V
Peripherals		Brown-out Detect/Reset, POR, WDT
Supplier Device Package		18-PDIP
Number of I/O		13
DigiKey Programmable		Verified

RESOURCE TYPE		LINK
Datasheets		PIC16CE625-20/P
Datasheets		MPLAB® ICE2000 Spec
Datasheets		Tips N Tricks Guide
Datasheets		Microchip REACH
Datasheets		Microchip RoHS
Datasheets		Mult Dev 13/Apr/2020
Datasheets		Label and Packing Changes 23/Sep/2015
Datasheets		Packing Changes 10/Oct/2016

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
