PIC16F628-20/SS _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	PIC16F628-20/SS
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	PIC16F628-20/SS-ND PIC16F62820SS PIC16F628-20/SS-NDR
Description	IC MCU 8BIT 3.5KB FLASH 20SSOP
Detailed Description	PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 20-SSOP
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		PIC® 16F
Packaging		Tube
Part Status		Active

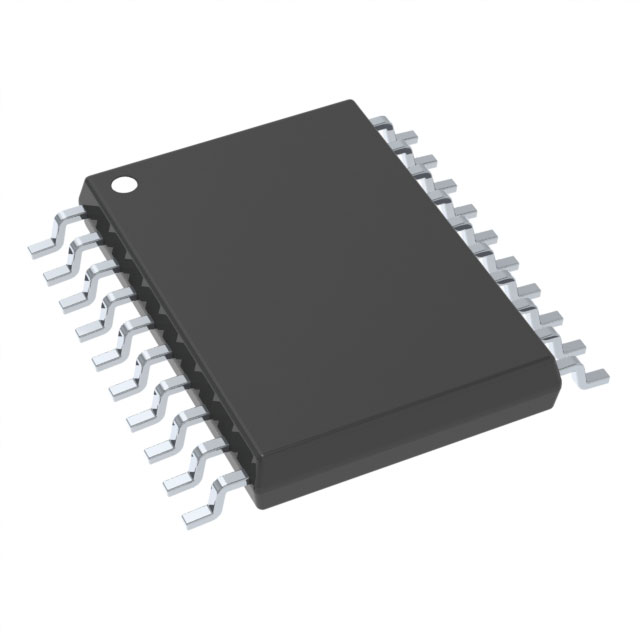

Package / Case		20-SSOP (0.209", 5.30mm Width)
Mounting Type		Surface Mount
Speed		20MHz
Program Memory Size		3.5KB (2K x 14)
RAM Size		224 x 8
Operating Temperature		0°C ~ 70°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
EEPROM Size		128 x 8
Core Processor		PIC
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		3V ~ 5.5V
Connectivity		UART/USART
Peripherals		Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package		20-SSOP
Number of I/O		16
DigiKey Programmable		Verified

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
