PIC16LC505-04I/SL _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	PIC16LC505-04I/SL
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	PIC16LC505-04I/SL-ND PIC16LC505-04I/SL-NDR
Description	IC MCU 8BIT 1.5KB OTP 14SOIC
Detailed Description	PIC PIC® 16C Microcontroller IC 8-Bit 4MHz 1.5KB (1K x 12) OTP 14-SOIC
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		PIC® 16C
Packaging		Tube
Part Status		Active

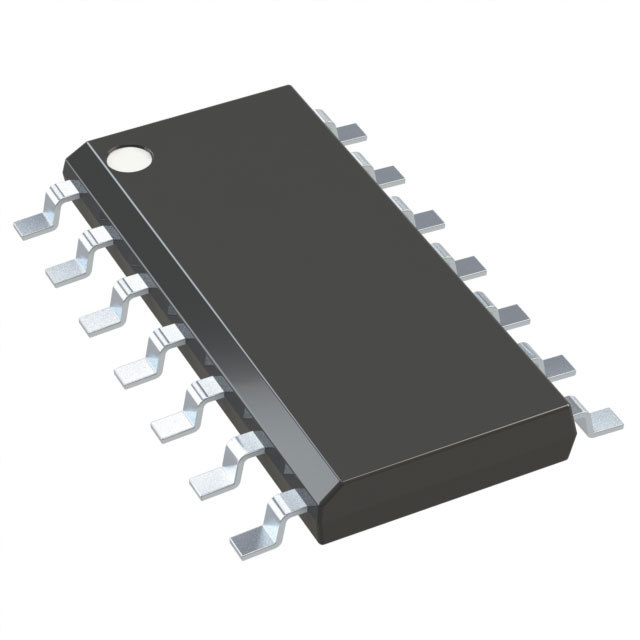

Package / Case		14-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Speed		4MHz
Program Memory Size		1.5KB (1K x 12)
RAM Size		72 x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		External
Program Memory Type		OTP
Core Processor		PIC
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		2.5V ~ 5.5V
Peripherals		POR, WDT
Supplier Device Package		14-SOIC
Number of I/O		12
DigiKey Programmable		Verified

RESOURCE TYPE		LINK
Datasheets		PIC16LC505-04I/SL
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		Copper Bond Wire 09/Mar/2015
Datasheets		Qual of Paddle 24/Feb/2017
Datasheets		Packing Changes 10/Oct/2016
Datasheets		Label and Packing Changes 23/Sep/2015

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
