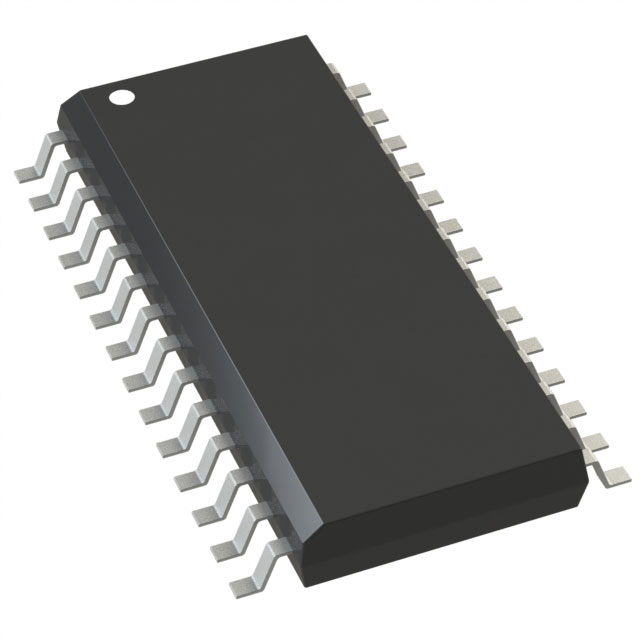

PIC24F08KA102-I/SO _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	PIC24F08KA102-I/SO
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	PIC24F08KA102-I/SO-ND PIC24F08KA102ISO
Description	IC MCU 16BIT 8KB FLASH 28SOIC
Detailed Description	PIC PIC® XLP™ 24F Microcontroller IC 16-Bit 32MHz 8KB (2.75K x 24) FLASH 28-SOIC
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		PIC® XLP™ 24F
Packaging		Tube
Part Status		Active
Package / Case		28-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Speed		32MHz
Program Memory Size		8KB (2.75K x 24)
RAM Size		1.5K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
EEPROM Size		512 x 8
Core Processor		PIC
Data Converters		A/D 9x10b
Core Size		16-Bit
Voltage - Supply (Vcc/Vdd)		1.8V ~ 3.6V
Connectivity		I2C, IrDA, SPI, UART/USART
Peripherals		Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package		28-SOIC
Number of I/O		24
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		PIC24F08KA102-I/SO
Datasheets		PIC24FzzKA(10z,20z) Programming Spec
Datasheets		dsPIC30F2010
Datasheets		Microchip RoHS
Datasheets		Microchip REACH

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
