PIC32MZ0512EFE100-E/PT _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	PIC32MZ0512EFE100-E/PT
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	PIC32MZ0512EFE100-E/PT-ND
Description	IC MCU 32BIT 512KB FLASH 100TQFP
Detailed Description	MIPS32® M-Class PIC® 32MZ Microcontroller IC 32-Bit Single-Core 180MHz 512KB (512K x 8) FLASH 100-TQFP (12x12)
Manufacturer Standard Lead Time	6 weeks

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		PIC® 32MZ
Packaging		Tray
Part Status		Active

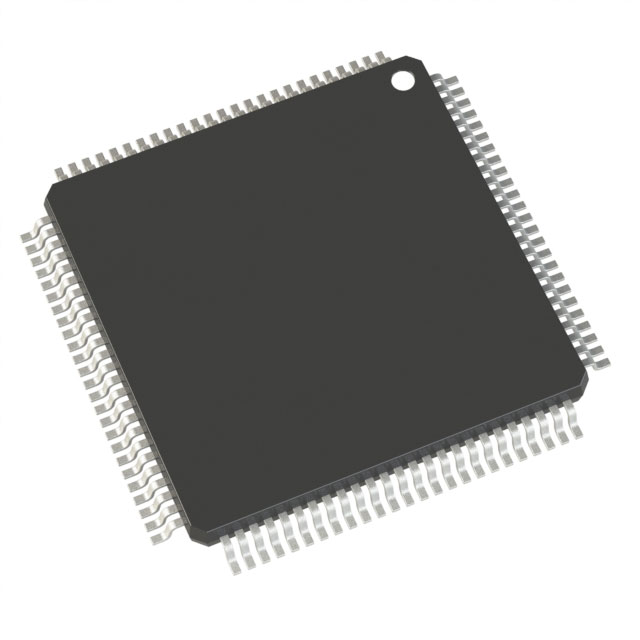

Package / Case		100-TQFP
Mounting Type		Surface Mount
Speed		180MHz
Program Memory Size		512KB (512K x 8)
RAM Size		128K x 8
Operating Temperature		-40°C ~ 125°C
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		MIPS32® M-Class
Data Converters		A/D 40x12b
Core Size		32-Bit Single-Core
Voltage - Supply (Vcc/Vdd)		2.1V ~ 3.6V
Connectivity		EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals		Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Supplier Device Package		100-TQFP (12x12)
Grade		Automotive
Number of I/O		78
DigiKey Programmable		Not Verified
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		PIC32MZ0512EFE100-E/PT
Datasheets		PIC32 Microcontroller Brochure
Datasheets		Microchip REACH
Datasheets		Microchip RoHS
Datasheets		PIC32MZ 11/Dec/2019
Datasheets		PIC32MZ 22/Jun/2021
Datasheets		Label and Packing Changes 23/Sep/2015
Datasheets		MBB/Label Chgs 16/Nov/2018
Datasheets		PIC32MZ EF

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
