Part Number	PIC32MZ2064DAH169T-I/6J
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	PIC32MZ2064DAH169T-I/6JTR-ND PIC32MZ2064DAH169T-I/6JCT-ND PIC32MZ2064DAH169T-I/6JDKR-ND PIC32MZ2064DAH169T-I/6JTR PIC32MZ2064DAH169T-I/6JCT PIC32MZ2064DAH169T-I/6JDKR
Description	IC MCU 32BIT 2MB FLASH 169LFBGA
Detailed Description	MIPS32® microAptiv™ PIC® 32MZ DA Microcontroller IC 32-Bit Single-Core 200MHz 2MB (2M x 8) FLASH 169-LFBGA (11x11)
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		PIC® 32MZ DA
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

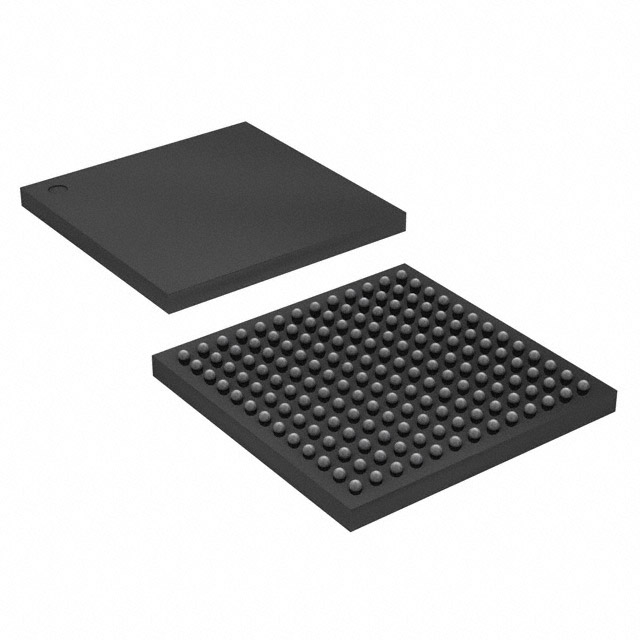

Package / Case		169-LFBGA
Mounting Type		Surface Mount
Speed		200MHz
Program Memory Size		2MB (2M x 8)
RAM Size		640K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		MIPS32® microAptiv™
Data Converters		A/D 45x12b
Core Size		32-Bit Single-Core
Voltage - Supply (Vcc/Vdd)		1.7V ~ 3.6V
Connectivity		CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals		Brown-out Detect/Reset, DMA, HLVD, I2S, POR, PWM, WDT
Supplier Device Package		169-LFBGA (11x11)
Number of I/O		120
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		PIC32MZ2064DAH169T-I/6J
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		PIC32MZ 02/Jul/2021
Datasheets		PIC32MZ Graphics (DA) Family Errata

ATTRIBUTE		DESCRIPTION
ECCN		5A992C
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
