Part Number |
PIM4R7M1004A3
|
---|---|
Manufacturer | Meritek |
Other Part Numbers |
2997-PIM4R7M1004A3CS-ND
2997-PIM4R7M1004A3TR-ND
2997-PIM4R7M1004A3
2997-PIM4R7M1004A3CS
2997-PIM4R7M1004A3TR
|

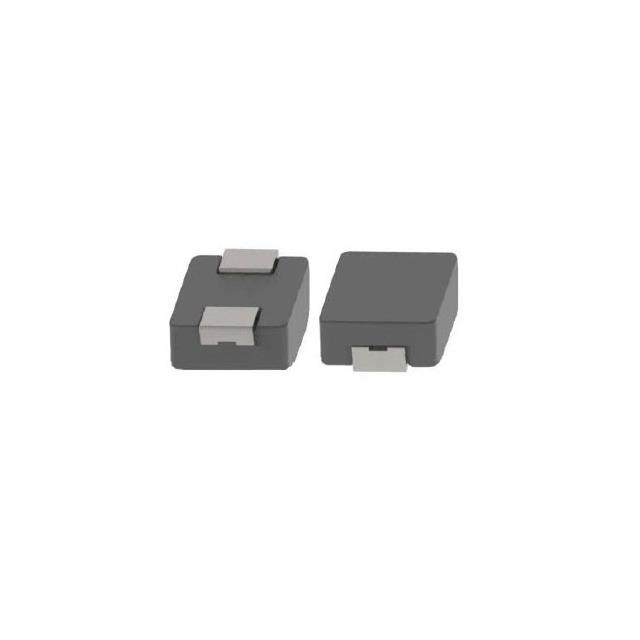

Description | MOLDED IND 4.7 UH M 8.8A 1004 |
Detailed Description | Shielded Molded Inductor 19mOhm Max High Current, Low Loss |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Meritek | |
Series |
PIM-1004A3
|
|
Packaging |
Strip
|
|
Part Status | Active | |
Tolerance | ±20% | |
Features | High Current, Low Loss | |
Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) | |
Mounting Type | Surface Mount | |
Shielding | Shielded | |
Type | Molded | |
Operating Temperature | -40°C ~ 125°C | |
DC Resistance (DCR) | 19mOhm Max | |
Frequency - Self Resonant | 100kHz | |
Ratings | AEC-Q200 | |
Current - Saturation (Isat) | 15.2A | |
Material - Core | Metal Composite | |
Height - Seated (Max) | 0.110" (2.80mm) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | PIM4R7M1004A3 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8532.25.0020 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | RoHS Compliant |
