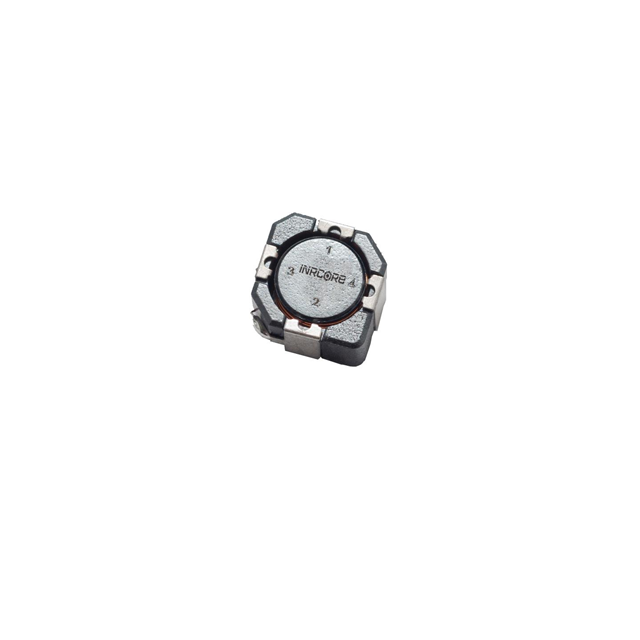

PL9505T

Part Number
PL9505T
Manufacturer PulseR (iNRCORE)
Other Part Numbers
PL9505T-ND
Description FIXED IND 6UH 1.7A 41.9 MOHM SMD
Detailed Description 6 µH Shielded Inductor 1.7 A 41.9mOhm Max Nonstandard
Manufacturer Standard Lead Time 11 weeks

Product Attributes

Category
Manufacturer PulseR (iNRCORE)
Series
PL95XX
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±30%
Package / Case Nonstandard
Size / Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -55°C ~ 130°C
DC Resistance (DCR) 41.9mOhm Max
Current - Saturation (Isat) 1.7A
Height - Seated (Max) 0.122" (3.10mm)
Inductance 6 µH
Current Rating (Amps) 1.7 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS non-compliant
