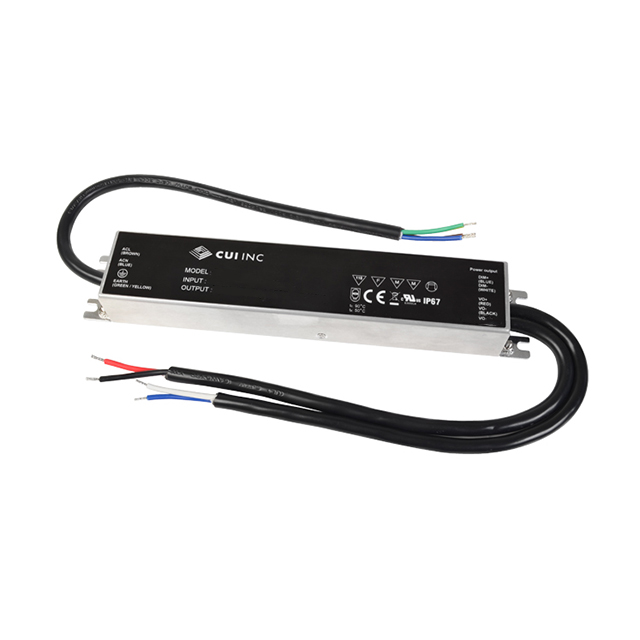

PLDS100-B-277PEB _ LED Drivers_Power Supplies - External/Internal (Off-Board)

Part Number	PLDS100-B-277PEB
Manufacturer	CUI Inc
Other Part Numbers	PLDS100-B-277PEB-ND PLDS100B277PEB
Description	LED DVR CC/CV AC/DC 13-24V 4.17A
Detailed Description	4.17A 13 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet	Datasheet

Category		Power Supplies - External/Internal (Off-Board) LED Drivers
Manufacturer		CUI Inc
Series		PLDS100 (100W)
Packaging		Box
Part Status		Obsolete
Features		OCP, OTP, OVP, SCP
Size / Dimension		7.87" L x 1.02" W x 1.10" H (200.0mm x 26.0mm x 28.0mm)
Voltage - Output		13 ~ 24V
Type		Constant Current, Voltage
Operating Temperature		-40°C ~ 70°C
Termination Style		Wire Leads
Voltage - Input (Max)		305VAC
Approval Agency		CE, cURus
Ratings		IP65
Efficiency		89%
Topology		AC DC Converter
Current - Output (Max)		4.17A
Dimming		Analog, PWM
Voltage - Input (Min)		90VAC
Power (Watts)		100 W
Number of Outputs		1
Voltage - Isolation		3.75 kV
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		VLED, PLDA, PLDS Series 24/Jan/2018

ATTRIBUTE		DESCRIPTION
ECCN		OBSOLETE
HTSUS		0000.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
