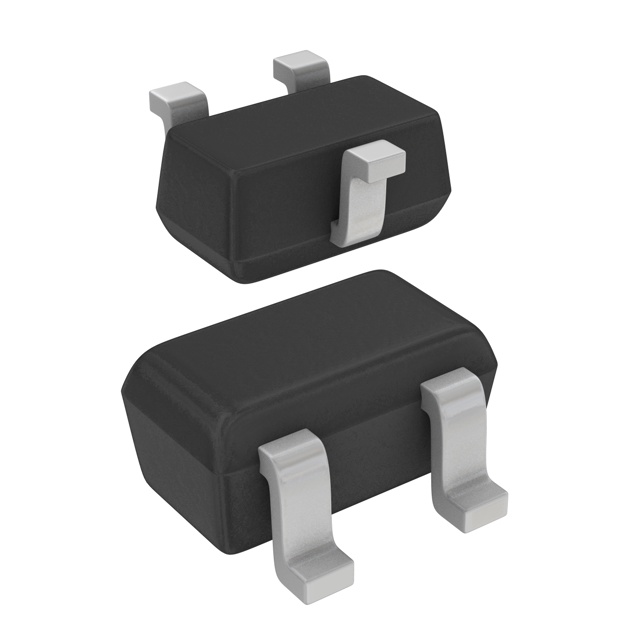

PMR290XN,115 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	PMR290XN,115
Manufacturer	NXP Semiconductors
Other Part Numbers	568-7437-2-ND 568-7437-2 PMR290XN T/R PMR290XN115 568-7437-1 934057956115 NEXNXPPMR290XN,115 PMR290XN T/R-ND 2156-PMR290XN115 568-7437-6 PMR290XN,115-ND
Description	MOSFET N-CH 20V 970MA SC75
Detailed Description	N-Channel 20 V 970mA (Tc) 530mW (Tc) Surface Mount SC-75
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		NXP Semiconductors
Series		TrenchMOS™
Packaging		Tape & Reel (TR)
Part Status		Obsolete
Package / Case		SC-75, SOT-416
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		970mA (Tc)
Rds On (Max) @ Id, Vgs		350mOhm @ 200mA, 4.5V
Power Dissipation (Max)		530mW (Tc)
Vgs(th) (Max) @ Id		1.5V @ 250µA
Supplier Device Package		SC-75
Drive Voltage (Max Rds On, Min Rds On)		2.5V, 4.5V
Vgs (Max)		±12V
Drain to Source Voltage (Vdss)		20 V
Gate Charge (Qg) (Max) @ Vgs		0.72 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		34 pF @ 20 V

RESOURCE TYPE		LINK
Datasheets		PMR290XN,115
Datasheets		NXP USA Inc REACH
Datasheets		NXP USA Inc RoHS Cert
Datasheets		Advance Notice SOT416 Devices 02/Sep/2014
Datasheets		Multiple Devices 03/Jul/2013
Datasheets		All Dev Label Update 15/Dec/2020

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
