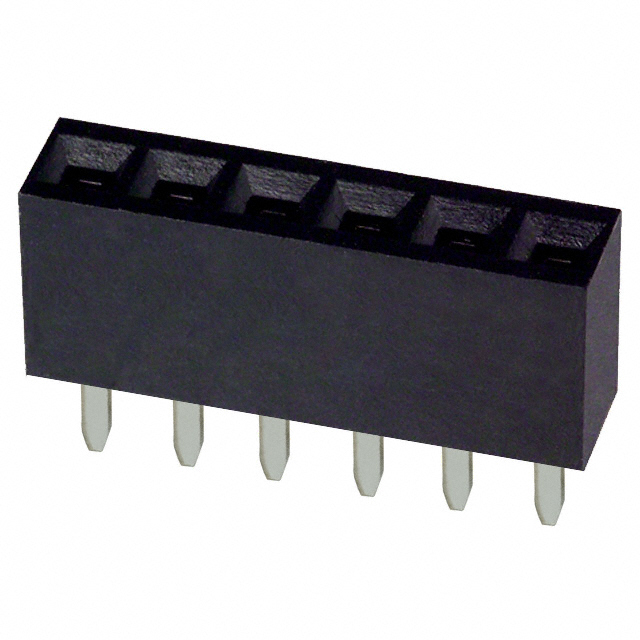

PPTC061LFBN _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	PPTC061LFBN
Manufacturer	Sullins Connector Solutions
Other Part Numbers	S4006-ND S4006
Description	CONN HDR 6POS 0.1 TIN PCB
Detailed Description	6 Position Header Connector 0.100" (2.54mm) Through Hole Tin
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Sullins Connector Solutions
Series
Packaging		Bulk
Part Status		Obsolete
Connector Type		Header
Voltage Rating		250V
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		6
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.126" (3.20mm)
Insulation Height		0.335" (8.51mm)
Insulation Material		Polyester
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		P(N)PzCzzzLFBN(-RC)
Datasheets		Sullins Connector Solutions RoHS Cert
Datasheets		Sullins Connector Solutions REACH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
