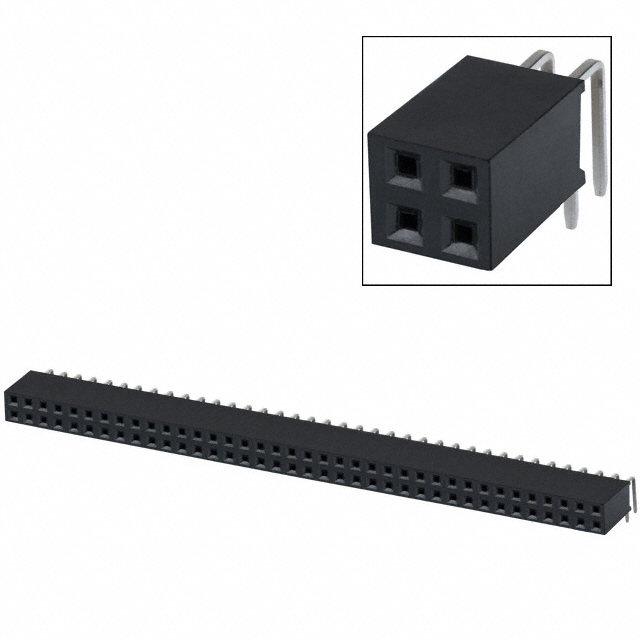

PPTC382LJBN-RC _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	PPTC382LJBN-RC
Manufacturer	Sullins Connector Solutions
Other Part Numbers	S5552-ND S5552
Description	CONN HDR 76POS 0.1 TIN PCB R/A
Detailed Description	76 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Sullins Connector Solutions
Series
Packaging		Tray
Part Status		Active
Connector Type		Header
Voltage Rating		250V
Current Rating (Amps)		3A
Mounting Type		Through Hole, Right Angle
Number of Positions		76
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.124" (3.15mm)
Insulation Height		0.200" (5.08mm)
Insulation Material		Polyester
Row Spacing - Mating		0.100" (2.54mm)
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		PPTC382LJBN-RC
Datasheets		Sullins Connector Solutions RoHS Cert
Datasheets		Sullins Connector Solutions REACH
Datasheets		xPxCxx2LJBN-RC Drawing
Datasheets		PP Series Dual Female Right Angle

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
