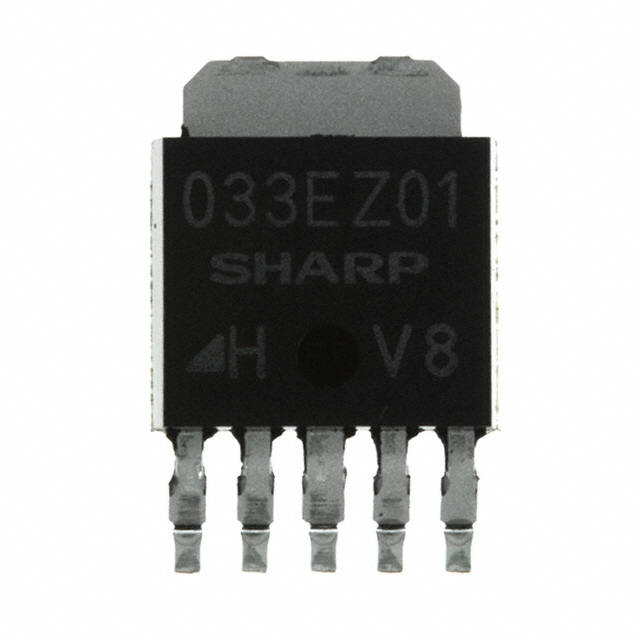

PQ033EZ01ZPH

Part Number
PQ033EZ01ZPH
Manufacturer Sharp Microelectronics
Other Part Numbers
425-2626-2-ND
425-2626-1
425-2626-2
425-2626-6
Description IC REG LINEAR 3.3V 1A SC63
Detailed Description Linear Voltage Regulator IC Positive Fixed 1 Output 1A SC-63

Product Attributes

Category
Manufacturer Sharp Microelectronics
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case TO-252-6, DPAK (5 Leads + Tab)
Output Type Fixed
Mounting Type Surface Mount
Current - Output 1A
Operating Temperature -40°C ~ 85°C
Output Configuration Positive
Current - Quiescent (Iq) 2 mA
Voltage - Input (Max) 10V
Number of Regulators 1
Supplier Device Package SC-63
Voltage - Output (Min/Fixed) 3.3V
Control Features Enable
PSRR 60dB (120Hz)
Voltage Dropout (Max) 0.5V @ 500mA
Protection Features Over Current, Over Temperature

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Obsolete

This product is no longer manufactured.
